Elkay 98869C Wiring Assembly (For Front Pushbar)

  • Item #: 162838
  • |
  • Model: 98869C
  • |
  • Manufacturer: Elkay

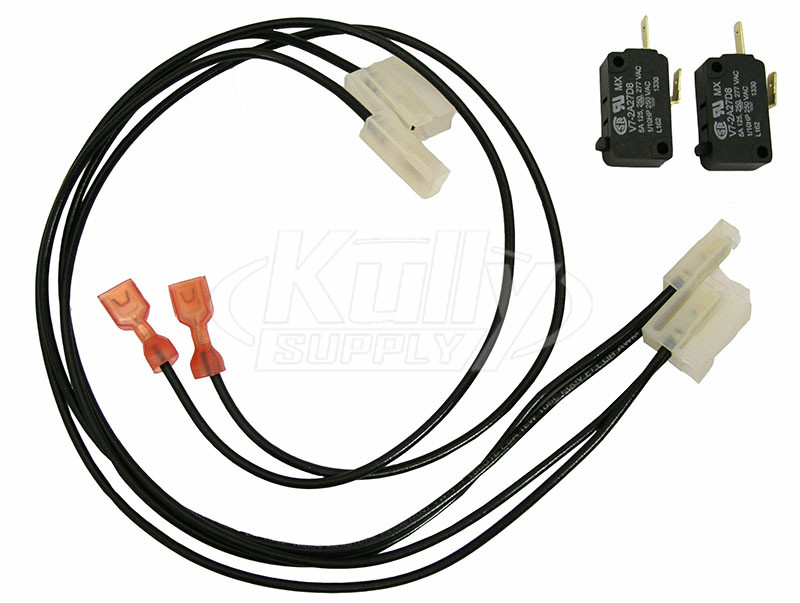

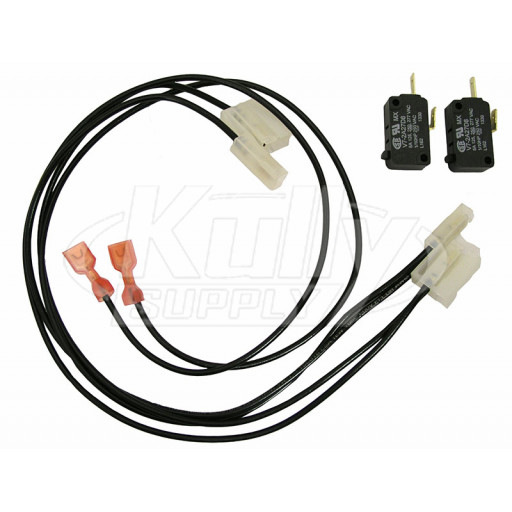

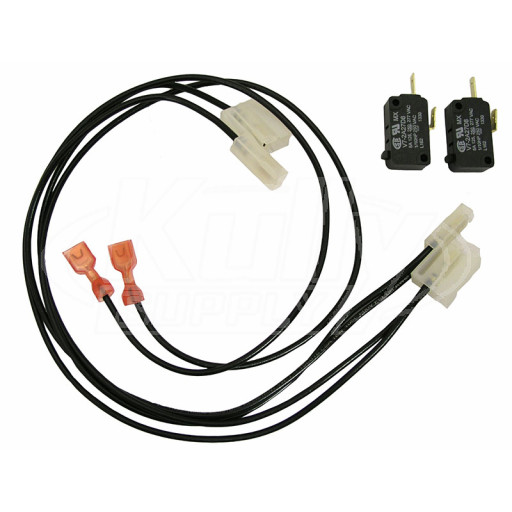

This Elkay 98869C Wiring Harness Kit replaces the switches and wiring harness on drinking fountains with a single front pushbar. The wiring connectors are pre-installed for easy installation of the harness.

In Stock
8 Ready To Ship Today
Additional Quantities Typically Ship in 1-2 Weeks

  • Product Description
  • Specifications
  • Related Products
  • Reviews (0)
  • Questions (0)
Product Description

Items Included

  • Wiring Harness
  • Dip Switch (Qty. 2)
  • Dip Switch Connector (Qty. 2)
  • Female Spade Connectors (Qty. 2)

Operation and Maintenance

Operation

When a push bar on the drinking fountain is pressed, one (or both) switch will send power to the solenoid which activates the water flow.

Installation

  1. Clip the switches into the drinking fountain frame.
  2. Align the tabs on the pushbar so they press the switch when the pushbar is pressed
  3. Route wires to avoid pinching or rubbing.
  4. Plug in female wire connectors (the wires are interchangeable)

Product Message

This kit is only for drinking fountains with a front pushbar only.  (For drinking fountains with front and side pushbars you will need kit #106462

Manufacturer Info

Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
