Description
GENERAL INFORMATION

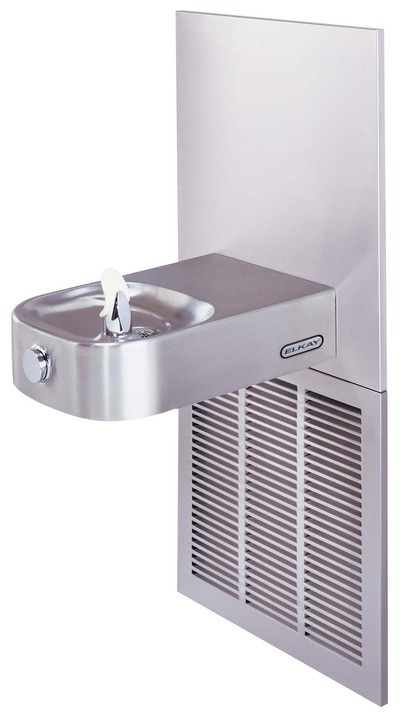

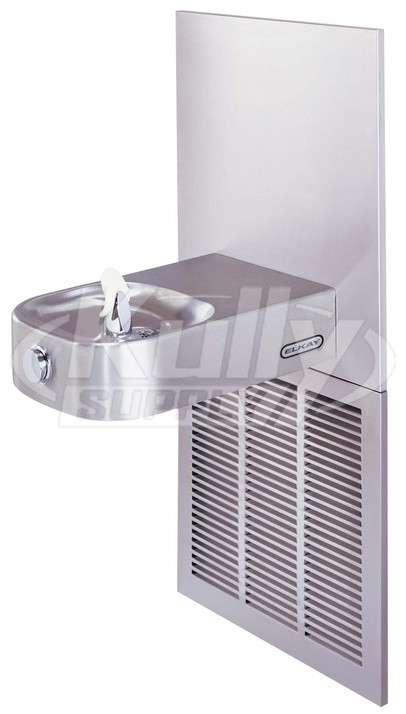

- Single station barrier-free stainless steel water cooler has recessed in-the-wall refrigeration system and stainless steel grill.
- All stainless steel polished to a satin finish.
- Fountain has contoured basin to minimize splashing. FlexiGuard safety bubbler and easy to operate, vandal-resistant front push button
- Flow regulator provides constant stream from 20 to 105 psi water pressure
- Vandal-resistant bottom cover plate included.
- Energy efficient refrigeration system utilizes a combination tank continuous-tube type evaporator, refrigerant drier, and capillary tube.
ADA Compliant
The Elkay ECRSPVRM8K water cooler complies with the requirements of A.D.A. (AMERICANS WITH DISABILITIES ACT) for children’s environments when properly installed. Provides a floor to orfice height of 30” and 24” of knee clearance. Check local and state codes.
No Lead Design
The Elkay ECRSPVRM8K Water Coolers are certified to be lead-free as defined by the Safe Drinking Water Act. Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free material. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of water born particulate of 140 microns and larger prior to their entry into the water cooler. The Elkay ECRSPVRM8K water cooler is certified to NSF/ANSI 61.
Cooling System
- Motor Compressor: Hermetically sealed, reciprocating type, 115V, 60 Hz single phase. Sealed-in lifetime oil supply.
- Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
- Cooling Unit: Combination tube-tank type. Self cleansing. Tube portion is continuous coil of copper tubing. Tank is stainless steel. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing material.
- Refrigerant Control: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free performance.
- Temperature Control: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements.
Construction
- Fountain Body: #18 gauge, type 304 nickel bearing stainless steel polished to a lustrous satin finish with high shined outer edge. Contoured basin offers large strike area to minimize splashing. Fully functional front push button is easy to operate.
- Exclusive Flexi-Guard® Safety Bubbler:* Innovative design utilizes a pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position. Strong. Abrasion-resistant. Anti-sweat. Optional Vandal-Resistant Bubbler available at extra cost. Heavy duty, one-piece construction, chrome plated brass. Order Model Number ECRSPVRM8K. Both bubblers meet UL requirements and all sanitary codes and are keyed in location to prevent rotation.
- Front Panel Grill: Made of type 304 stainless steel, polished to a uniform Elkay satin finish. Removable louvered ventilating grill encloses refrigeration unit and plumbing.
- Wall Mounting Frame: MFC100 frame furnished with each unit. Frame allows flush mounting to finished wall.
Manufacturer Info
Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
