Elkay EDFPB117FPK Freeze Resistant, NON-REFRIGERATED In-Wall Dual Drinking Fountain

Description

• Requires In-Wall Carrier

Features and Benefits

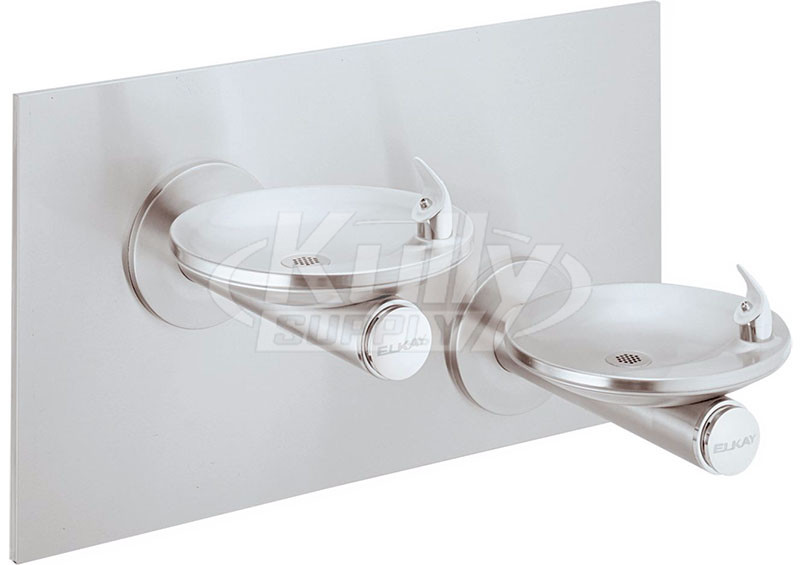

Fully exposed two-level fountain basins are #18 gauge, 300 series stainless steel polished to a lustrous satin finish with high shine outer edge. #16 gauge, 300 series tubular stainless steel support arms incorporate unique recess to be integrated with basin. One fountain positioned lower on the right for wheelchair use. The other positioned on the left at standing height.

Fountains have contoured basin that minimizes splashing. Flexi-Guard® safety bubblers are keyed in location to prevent rotation. Fully functional, vandal-resistant front push button. Flow regulator provides constant stream from 20 to 105 psi water pressure.

THIS DRINKING FOUNTAIN COMPLIES WITH THE REQUIREMENTS OF A.D.A. (AMERICANS WITH DISABILITIES ACT) PROVIDING THE UNIT IS INSTALLED IN AN ALCOVE OR WITH LEFT WING WALL.

Construction

EDFPBM117C two-level fountain furnished complete with Flexi-Guard® fully assembled with front push button, flow regulator (120 to 105 psi), stainless steel back panel and surface mounting plate. No traps are furnished. EDFPB117FPK comes with a freeze resistant box.

Also Available

Model EDFPBMV117C: Includes vandal-resistant bubblers. Heavy duty, one-piece construction, chrome plated brass. Models EDFPB117C and EDFPBV117C do not include the surface mounting plate. Designed to mount with MPW200 in wall mounting plate carrier accessory. ML100 in-wall support legs are optional. EDFPB11FPK Requires In-Wall Carrier MPW200 (sold separately)

Manufacturer Info

Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
