Features and Benefits
Fully exposed two-level fountain basins are #18 gauge, 300 series stainless steel polished to a lustrous satin finish with high shine outer edge. #16 gauge, 300 series tubular stainless steel support arms incorporate unique recess to be integrated with basin. One fountain positioned lower on the left for wheelchair use. The other positioned on the right at standing height.
Fountains have contoured basin that minimizes splashing. Flexi-Guard® safety bubblers are keyed in location to prevent rotation. Fully functional, vandal-resistant front push button. Flow regulator provides constant stream from 20 to 105 psi water pressure.
THIS DRINKING FOUNTAIN COMPLIES WITH THE REQUIREMENTS OF A.D.A. (AMERICANS WITH DISABILITIES ACT) PROVIDING THE UNIT IS INSTALLED IN AN ALCOVE OR WITH RIGHT WING WALL.
Construction
EDFPBM117RAC two-level fountain furnished complete with Flexi-Guard® fully assembled with front push button, flow regulator (120 to 105 psi), stainless steel back panel and surface mounting plate. No traps are furnished.

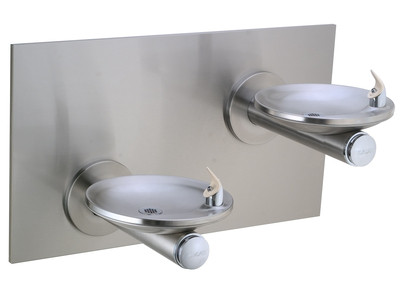

EDFPB117FPRAK comes with a freeze resistant box.
Also Available
Model EDFPBMV117RAC: Includes vandal-resistant bubblers. Heavy duty, one-piece construction, chrome plated brass.
Models EDFPB117RAC and EDFPBV117RAC do not include the surface mounting plate. Designed to mount with MPW200 in-wall mounting plate carrier accessory. ML100 in-wall support legs are optional. EDFPB117FPRAK Requires In-Wall Carrier MPW200 (sold separately)
