Description
GENERAL

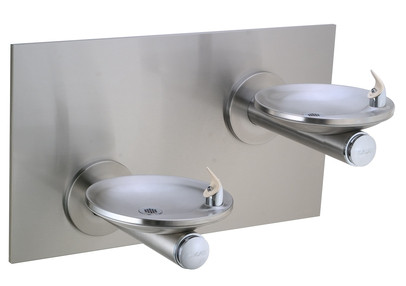

Fully exposed two-level fountain basins are #18 gauge, 300 series stainless steel polished to a lustrous satin finish with high shine outer edge. #16 gauge, 300 series tubular stainless steel support arms incorporate unique recess to be integrated with basin. One fountain positioned lower on the left for wheelchair use. The other positioned on the right at standing height.
Fountains have contoured basin that minimizes splashing. Flexi-Guard® safety bubblers are keyed in location to prevent rotation. Fully functional, vandal-resistant front push button. Flow regulator provides constant stream from 20 to 105 psi water pressure.
THIS DRINKING FOUNTAIN COMPLIES WITH THE REQUIREMENTS OF A.D.A. (AMERICANS WITH DISABILITIES ACT) PROVIDING THE UNIT IS INSTALLED IN AN ALCOVE OR WITH RIGHT WING WALL.
NO LEAD DESIGN
THIS DRINKING FOUNTAIN COMPLIES WITH THE LEADFREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988.
Elkay Drinking Fountains are manufactured with a waterway system utilizing copper components and completely lead-free material. These waterways have no lead because all leaded materials, such as leaded brass, have been removed.
This fountain is certified by WQA to lead-free compliance including NSF/ANSI 61-ANNEX G, AB 1953.
CONSTRUCTION
EDFPBM117RAC two-level fountain furnished complete with Flexi-Guard® fully assembled with front push button, flow regulator (120 to 105 psi), stainless steel back panel and surface mounting plate. No traps are furnished.
Accessories
AP99 – Access Panel (Required for servicing)
ALSO AVAILABLE
Model EDFPBMV117RAC: Includes vandal-resistant bubblers. Heavy duty, one-piece construction, chrome plated brass.
Models EDFPB117RAC and EDFPBV117RAC do not include the surface mounting plate. Designed to mount with MPW200 in-wall mounting plate carrier accessory. ML100 in-wall support legs are optional.
Manufacturer Info
Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
