Description
GENERAL

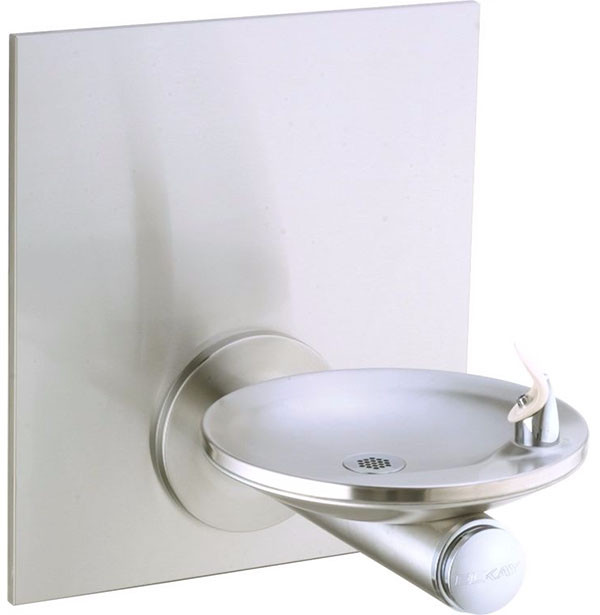

Wall mounted drinking fountain basin constructed of #18 gauge, 300 series stainless steel polished to a lustrous satin finish with high shined outer edge. #16 gauge, type 304 tubular stainless steel support arm incorporates a recess to be integrated with basin.
Contoured basin minimizes splashing and has exclusive FlexiGuard® safety bubbler to prevent accidental mouth injuries. Keyed in location to prevent rotation. Fully functional, vandalresistant front push button is easy to operate. Flow regulator provides constant stream from 20 to 105 psi water pressure. Vandal-resistant bottom cover plate.
THIS WATER COOLER COMPLIES WITH THE REQUIREMENTS OF A.D.A. (AMERICANS WITH DISABILITIES ACT).
NO LEAD DESIGN
THIS DRINKING FOUNTAIN COMPLIES WITH THE LEADFREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988.
Elkay Drinking Fountains are manufactured with a waterway system utilizing copper components and completely lead-free material. These waterways have no lead because all leaded materials, such as leaded brass, have been removed.
This fountain is certified by WQA to lead-free compliance including NSF/ANSI 61-ANNEX G, AB 1953.
CONSTRUCTION
EDFPBWM114C furnished complete with Flexi-Guard® fully assembled front push button, flow regulator (20 to 105 psi) with surface mounting plate and stainless steel wall plate. No trap furnished.
EDFPBW114C does not include the surface mounting plate. To be mounted with MPW101 in-wall mounting plate carrier accessory. ML100 in-wall support legs are optional.
Accessories
AP99 – Access Panel (required for servicing)
