Elkay EHF(S)A.F Parts Breakdown

  • Item #: breakdown-EHF(S)A.F
  • |
  • Model: EHF(S)A.F
  • |
  • Manufacturer: Elkay

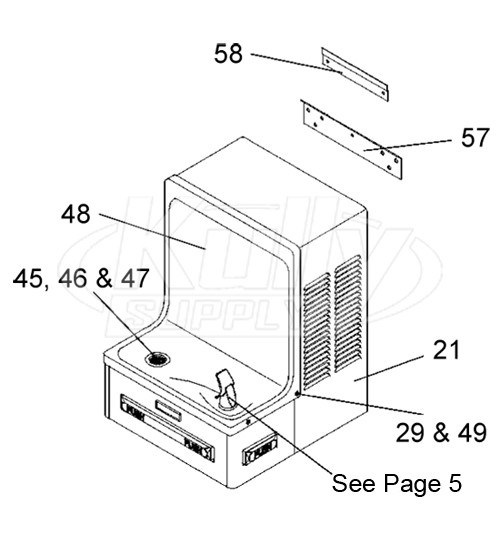

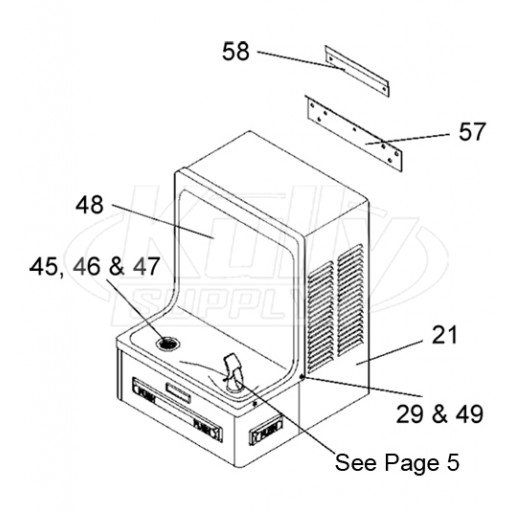

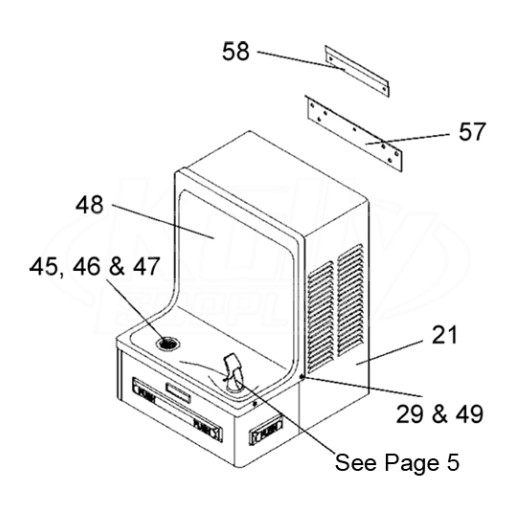

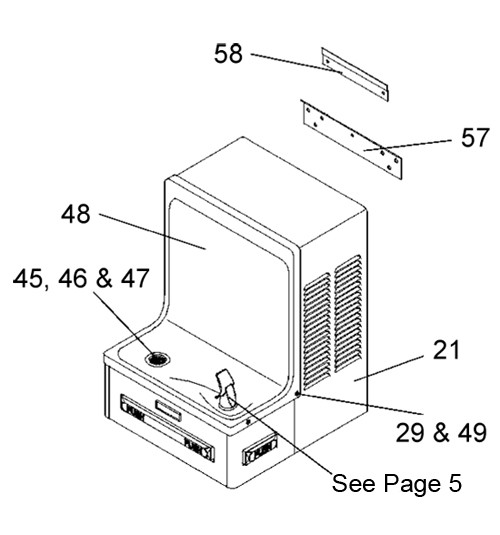

Breakdown for models: EHFA8*1F, EHFSA8*1F, EHFA8R*1F, EHFSA8*3FJO
Part # Image Part Details Price Options
1 Elkay 26588C Panel-Bottom Dispenser EHFA Item #: 135366 Learn More
$36.25
2 Elkay 98537C Push Bar Repair Kit Item #: 140046 Learn More
$35.00
3 Elkay 11-14117-43-620 Nut 1/4" Item #: 102542 Learn More
More Info
4 Elkay 22901C Side Push Bar Bracket Item #: 102465 Learn More
$15.40
5 Elkay 26635C Side Panel Beige Gray Item #: 102513 Learn More
$33.08
5 Elkay 26650C Right Side Panel w/hole Item #: 133428 Learn More
$45.00
6 Elkay 26605C Side Panel Beige Gray LH, w/o holes Item #: 106182 Learn More
$33.08
6 Elkay 26620C Left Side Panel Item #: 129522 Learn More
$45.00
7 Elkay 26590C Front Panel Grey Beige Item #: 102514 Learn More
List Price: $46.00 $42.36 You Save 8%
8 Elkay 51565C Front OR Side Push Bar Grey Item #: 102482 Learn More
$21.00
8 Elkay 51566C PBAR -PUSH SIDE BROWN Item #: 136300 Learn More
$27.50
9 Elkay 51559C Front Push Bar Grey Item #: 102481 Learn More
$28.50
9 Elkay 51560C PBAR -PUSH FRONT BROWN Item #: 136299 Learn More
$32.50
10 Elkay 22900C Front Push Bar Bracket Item #: 102464 Learn More
$21.00
11 Elkay 70864C Torx Head Screw Item #: 102501 Learn More
$2.75
12 Elkay 50212C Pivot Block Pin Item #: 102477 Learn More
$7.56
More Info
13 Elkay 51667C Bumper, Press Bar Item #: 102819 Learn More
$8.52
14 Elkay 40045C Hex Nut Item #: 102472 Learn More
$28.59
15 Elkay 23003C Bracket, Regulator Mounting Item #: 102808 Learn More
$15.00
16-18 Elkay 98531C Drinking Fountain Valve and Regulator Kit (Green Spring Cartridge) Item #: 140048 Learn More
$72.00
16 Elkay 15005C Cartridge Retaining Nut Item #: 102460 Learn More
$8.34
More Info
17 Elkay 61314C Valve Regulator Cartridge (Green Spring) Item #: 102539 Learn More
$40.83
18 Elkay Cartridge Holder 50986C Item #: 102478 Learn More
$43.75
19 Elkay 70935C Screw-Shoulder Item #: 106157 Learn More
$5.50
20 Elkay 11-26275-43-890 Screw 10/24 Item #: 102504 Learn More
$2.75
21 Elkay 22706C Panel Wrapper Item #: 106931 Learn More
$79.80
More Info
22 Elkay 31517C Cord-Power 115V (Discontinued) Item #: 129690 Learn More
More Info
23 Elkay 27095C Fan Mounting Bracket Item #: 135476 Learn More
$13.86
24 Elkay 30699C Fan Blade Item #: 129536 Learn More
$23.15
More Info
25-27 Elkay 98775C Fan Motor Assembly Kit Item #: 162844 Learn More
List Price: $130.00 $117.00 You Save 10%
25 Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued) Item #: 106370 Learn More
More Info
26 Elkay 31490C Fan Motor (Discontinued) Item #: 102518 Learn More
More Info
27 Elkay 70009C Exp-Screw Furn w/AL Motor Item #: 106633 Learn More
More Info
28 Elkay 50186C Shroud, Fan ESWA Item #: 106374 Learn More
$17.72
29 Elkay 70142C Nut -Speed 10-24 Item #: 136588 Learn More
$6.27
30 Elkay 92715C Flexi-Guard Bubbler Head Kit Item #: 102494 Learn More
List Price: $42.00 $37.80 You Save 10%
31 Elkay 40322C Stream Breaker Item #: 102823 Learn More
$15.40
32 Elkay 55997C Pedestal (Discontinued) Item #: 107133 Learn More
More Info
33 Elkay 56011C Bubbler Guard (Discontinued) Item #: 107210 Learn More
More Info
34 Elkay 75580C Bubbler Kit Nut (Discontinued) Item #: 106824 Learn More
More Info
34 Elkay 70012C Lock Nut Item #: 102822 Learn More
$21.00
35 Elkay 98776C Condenser/Drier Kit Item #: 162845 Learn More
List Price: $99.00 $89.10 You Save 10%
36 Elkay 66202C Drier Item #: 106303 Learn More
$30.00
37 Elkay 50144C GRMMT-COMPRESSOR Item #: 136255 Learn More
$9.07
38 Elkay 70184C HAIR PIN-COTTER Item #: 136592 Learn More
$2.75
39 Elkay 70418C WASHR-FLAT(SPECIAL)1.25OD Item #: 136623 Learn More
$4.99
40 Elkay 36094C Compressor Service Pak 115V (Discontinued) Item #: 106299 Learn More
More Info
41-43 Elkay 98535C Overload, Relay and Cover Kit - 115V Item #: 140041 Learn More
List Price: $45.00 $41.37 You Save 8%
41 Elkay 36158C Overload 115V (Discontinued) Item #: 106323 Learn More
More Info
42 Elkay 35768C Cover Relay (Discontinued) Item #: 129695 Learn More
More Info
43 Elkay 35959C Relay (Discontinued) Item #: 102705 Learn More
More Info
44 Elkay 66576C HEATX-BARRIER FREE (Discontinued) Item #: 136522 Learn More
More Info
45 Elkay 0000000928 Tailpipe 1 7/8 inch Item #: 166862 Learn More
$18.00
46 Elkay 40575C Drain Assembly Item #: 102619 Learn More
List Price: $44.00 $40.39 You Save 8%
47 Elkay 50074C Drain Gasket Item #: 102475 Learn More
$6.60
48 Elkay 21222C Stainless Steel Basin and Backsplash Item #: 102666 Learn More
$436.50
49 Elkay 70208C SCREW-#10-24 X .38 PHTC Item #: 136595 Learn More
$4.99
50 Elkay 31513C Cold Control Thermostat Item #: 102467 Learn More
$43.20
51 Elkay 98724C Evaporator Replacement Kit Item #: 151228 Learn More
$296.10
52 Elkay 55996C Strainer Item #: 102483 Learn More
$27.50
53 Elkay 27093C Angle-Front Corner Item #: 135475 Learn More
$15.83
54 Elkay 27094C Bracket-Front Support Item #: 106790 Learn More
$26.40
55 Elkay 28797C Bracket-Basin Mounting Item #: 136844 Learn More
$10.96
56 Elkay 27097C Frame-Back/Bottom Item #: 135477 Learn More
List Price: $50.60 $49.68 You Save 2%
57 Elkay 20430C Bracket-Wall ESWA Item #: 107022 Learn More
$28.50
58 Elkay 20774C Bracket-Hanger Item #: 107023 Learn More
$31.25
59 Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48" Item #: 102487 Learn More
$15.40
