Features and Benefits

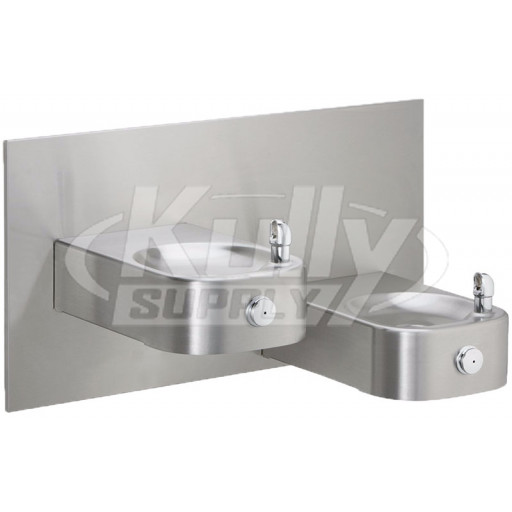

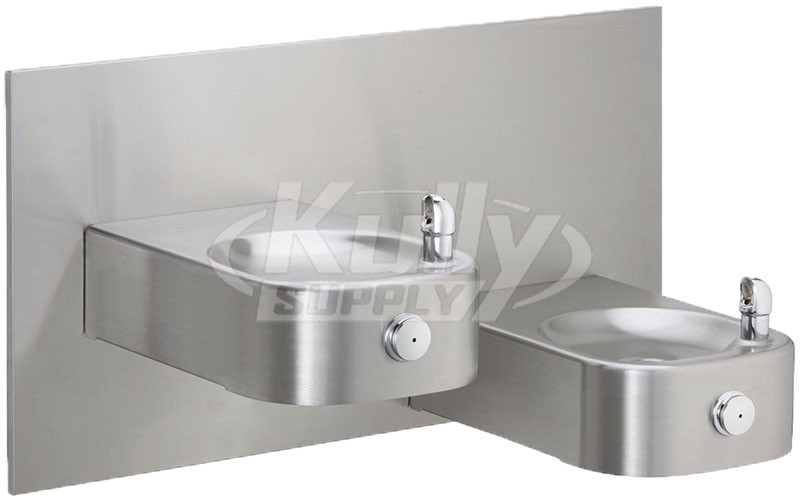

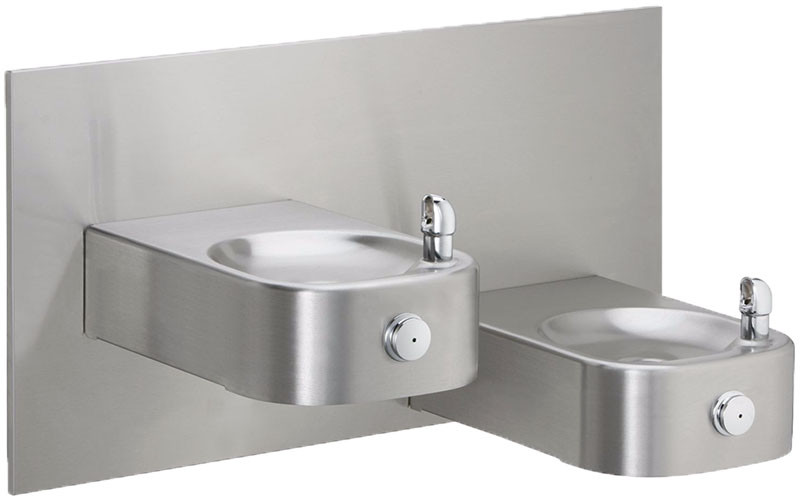

Wall mounted freeze-resistant drinking fountain constructed of #14 gauge, type 304, stainless steel polished to a lustrous satin finish. Contoured basin minimizes splashing and has vandal-resistant bubbler. Keyed in location to prevent rotation. Easy to operate, fully functional chrome plated push button is vandal-resistant. Bottom cover plate included. Flow regulator provides constant stream from 20 to 105 psi water pressure.
Includes freeze-resistant box LKFRB1 to be mounted on an interior heated wall where the temperature does not drop below 50°F (10°C).
Complies with the requirements of A.D.A. (American’s with Disabilities Act) when properly installed.
Construction
- EHWM217FPK furnished complete with vandal-resistant bubbler and easy to operate, vandal-resistant front push-button. Patented* valve and in-line flow regulator provides stream from (20-105 psi). Stainless steel wall plate with surface mounting plate and vandal-resistant 14 gauge bottom cover plate included.
- EHW217FPK does not include the surface mounting plate. To be mounted with MPW200 in-wall mounting plate. ML100 in-wall support legs are optional. Requires In-Wall Carrier MPW200 (sold separately)
- MPW200 In-wall carrier (ordered separately) constructed of heavy-gauge steel. Plate can be installed directly to studs or with optional ML100 support legs. All parts painted with a protective coating to last.
- LKFRB1 includes box with separate front louvered panel. Flow regulator provides constant stream from 20 to 105 psi water pressure. Operated by adjustable cable system. Trap and drain tube included for proper installation.
Manufacturer Info
Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
