Description
GENERAL

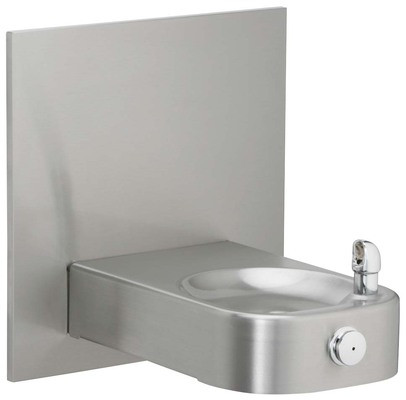

Wall mounted drinking fountain constructed of #14 gauge, type 304, stainless steel polished to a satin finish.
Contoured basin minimizes splashing and has vandal-resistant bubbler. Keyed in location to prevent rotation. Easy to operate, fully functional push button is vandal-resistant. Bottom cover plate included. Flow regulator provides constant stream from 20 to 105 psi water pressure.
ADA Compliant
THIS DRINKING FOUNTAIN COMPLIES WITH THE REQUIREMENTS OF A.D.A. (AMERICANS WITH DISABILITIES ACT) WHEN PROPERLY INSTALLED. UNIT IS COMPLIANT IF INSTALLED IN AN ALCOVE AND IS ALSO COMPLIANT WHEN MOUNTED ON AN EXPOSED WALL IF A WING WALL IS LOCATED ON THE LEFT SIDE OR IF A APRON IS INSTALLED UNDER THE UPPER UNIT.
NO LEAD DESIGN
THIS DRINKING FOUNTAIN COMPLIES WITH THE LEADFREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988.
Elkay Drinking Fountains are manufactured with a waterway system utilizing copper components and completely lead-free material. These waterways have no lead because all leaded materials, such as leaded brass, have been removed.
CONSTRUCTION
EHWM14C(FPK) furnished complete with vandal-resistant bubbler and easy to operate, vandal-resistant front push button. Flow regulator provides constant stream from 20 to 105 psi water pressure. Stainless steel wall plate with surface mounting plate and vandal-resistant 14 gauge bottom cover plate included. Trap furnished by others.
Features and Benefits
- No Lead Design water system is free of lead-containing brass parts.
- Barrier-Free ADA Design meets adult or child ADA standards when properly installed.
- 14-Gauge Heavy-Duty Stainless Steel with durable satin finish that resists stains and corrosion.
- Self-Closing Vandal-Resistant Pushbuttons do not require grasping or twisting.
- Attractive Curved Profile offers safe, unobtrusive profile.
- Vandal-Resistant Bubbler is chrome plated.
- Contoured Basin provides splash-resistant surface.
- One-Piece Vandal-Resistant Drain is less susceptible to tampering.
- Bottom Cover Plate prevents vandalism.
Manufacturer Info
Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
