Features and Benefits

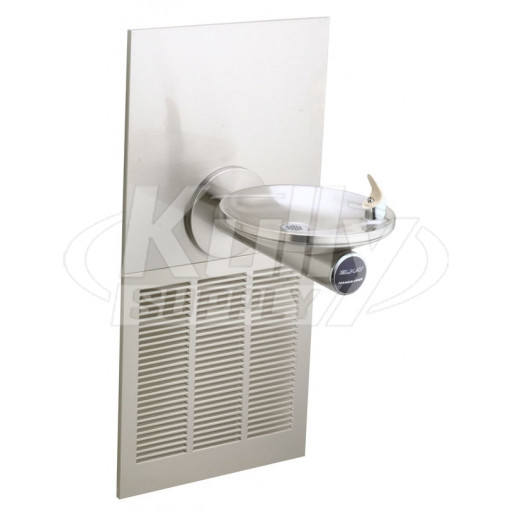

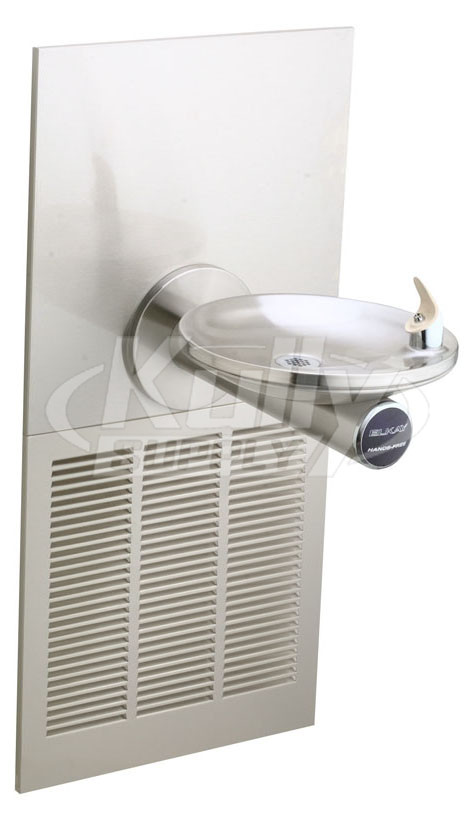

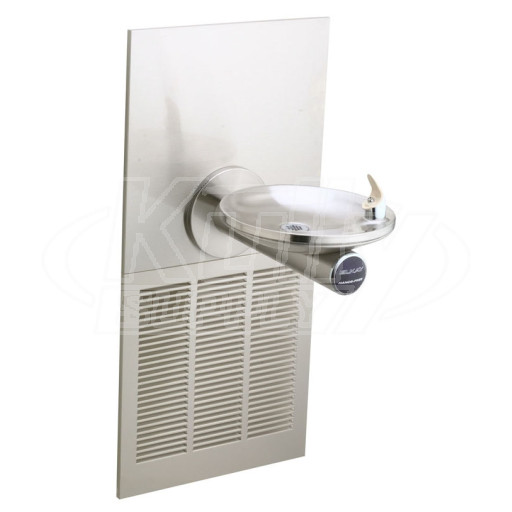

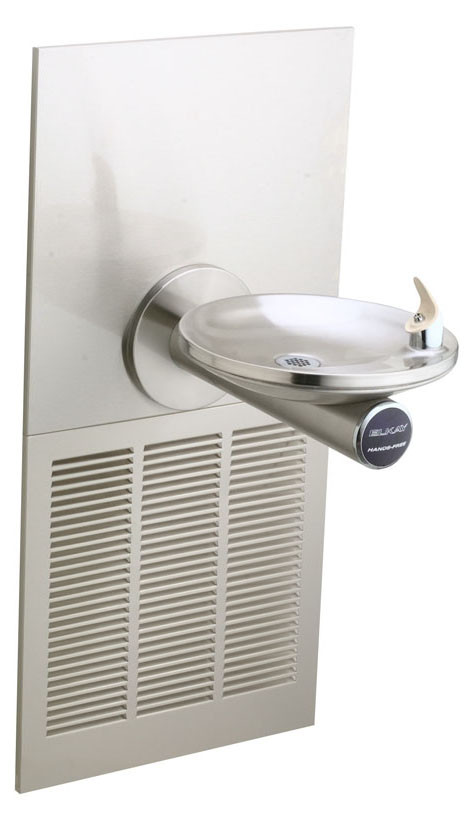

Single station barrier-free stainless steel water cooler has recessed in-the-wall refrigeration system and stainless steel grill. Stainless tubular
steel support arm incorporates unique recess to be integrated with basin. All stainless steel polished to lustrous satin finish with high shined outer edge. Unit shall meet ADA guidelines. Unit shall be lead-free design which is certified to NSF/ANSI 61 and 372 and meets Federal and State low lead requirements.
- Electronic Sensor Hands-Free® Operation: On-off solenoid valve is actuated by an infrared light beam sensor. When light beam is interrupted by subject in front of cooler desiring a drink, the sensor actuates the solenoid valve which then opens to allow water flow. No physical contact with cooler is required. A built in time delay is provided to prevent actuation by persons moving past cooler. There is a maximum running time of 30 seconds to prevent malicious damage to the cooler or water damage if sensor vision is blocked. Unit automatically resets when blockage is removed. Sensor range is adjustable.
- Fully exposed fountain basin is #18 gauge, 300 series stainless steel polished to a lustrous satin finish with high shine outer edge.
- #16 gauge, 300 series tubular stainless steel support arms incorporate unique recess to be integrated with basin.
- Fountain has contoured basin to minimize splashing.
- Includes Flexi-Guard® Safety bubbler and easy to operate, fully functional vandal-resistant front push button.
- Flow regulator provides constant stream from 20 to 105 psi water pressure.
Cooling System
- Compressor: hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication.
- Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
- *Cooling Unit: Tube type. Self-cleansing. Continuous copper tubing which is fully insulated with EPS foam that meets UL requirements for self-extinguishing material.
- Refrigerant Control: Refrigerant R134a is controlled by accurately calibrated capillary tube.
- Temperature Control: Easily accessible enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements.
Construction
- ENOB(M)8K fountain furnished complete with Flexi-Guard® Safety bubbler fully assembled with front push button, flow regulator (20 to 105 psi), stainless steel back panel. No traps are furnished.
- Exclusive Flexi-Guard® Safety bubbler utilizes an infused anti-microbial pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact.
- Includes stainless steel lower panel
- Furnished with wall mounting frame constructed of galvanized steel.
- Mounting frame MF100 can be ordered separately for pre-install
