Features and Benefits

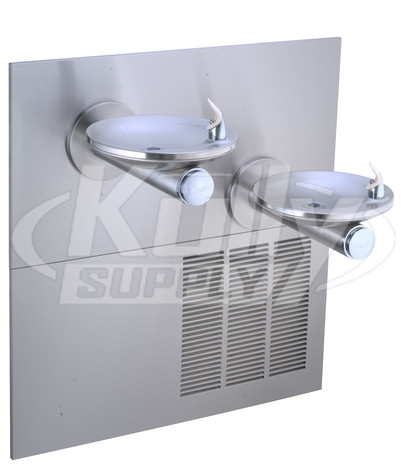

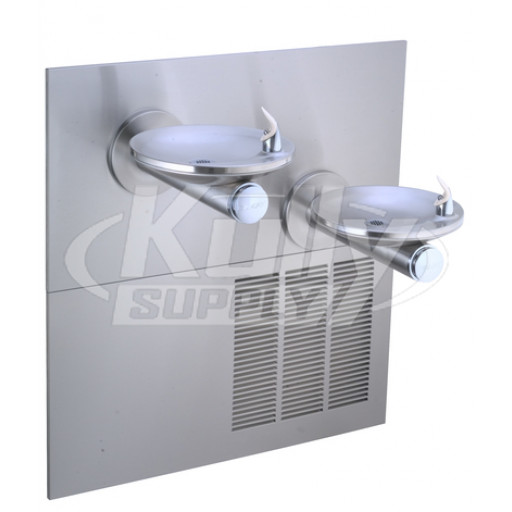

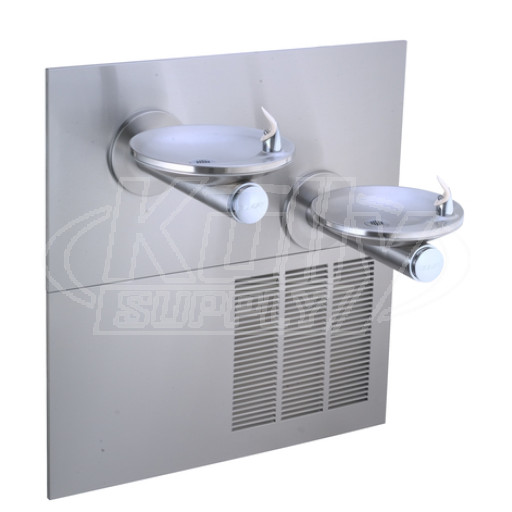

GreenSpec Listed, energy and water efficient refrigerated model. Two-level station barrier-free stainless steel water cooler has recessed in-the-wall refrigeration system and stainless steel grill. Stainless tubular steel support arm incorporates unique recess to be integrated with basin. All stainless steel polished to lustrous satin finish with high shined outer edge. Fountain has contoured basin to minimize splashing.Flexi-Guard StreamSaver water-efficient bubbler and easy to operate, fully functional vandal-resistant front push button. In keeping with our commitment to continuous improvement, Elkay reserves the right to change product specifications without notice. This specification describes an Elkay product with design, quality and functional benefits to the user. When making a comparison of other producer’s offerings, be certain these features are not overlooked.
Flow regulator provides constant stream from 20 to 105 psi water pressure.
NOTE: Minimum 40 psi supply line pressure required in special circumstances where both sides of bi-level are in use simultaneously to ensure adequate stream height.
Cooling System
Motor Compressor: Hermetically sealed, reciprocating type 115V, 60Hz, single phase. Sealed-in lifetime oil supply.
Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
Cooling Unit: Combination tube-tank type.Self cleansing.Tube portion is continuous coil of copper tubing. Tank is stainless steel. Fully insulated with EPSfoam which meets Underwriters Laboratories Inc. requirements for self extinguishing material.
Temperature Control: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements.
Refrigerant Control: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free performance.
Construction
Fountain Body: #18 gauge, 300 series nickel bearing stainless steel basin polished to a lustrous satin finish with high shined outer edge. Contoured basin offers large strike area to minimize splashing. #16 gauge, 300 series tubular support arm
Exclusive Flexi-Guard StreamSaver Bubbler: prevent accidental mouth injuries. Flexes on impact, then returns to original position. Strong, abrasion-resistant. Anti-sweat. Bubbler meets UL requirements and all sanitary codes.
Vandal-Resistant Bubbler (Option): One-piece, heavy Duty.
Front Panel Grill: Made of 300 series stainless steel, polished to a uniform Elkay satin finish. Removable louvered ventilating grill encloses refrigeration unit and plumbing.
Wall Mounting Frame: MF200 frame furnished with each unit. Frame allows flush mounting to finished wall.
5 YEAR LIMITED WARRANTY on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation. Sample certification available upon request.
Manufacturer Info
Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
