Product Description

Description

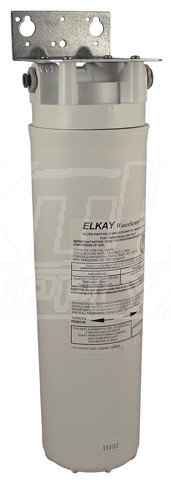

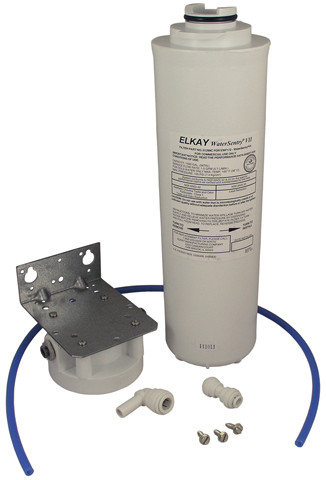

Designed to remove cysts such as cryptosporidium and giardia, lead particles and chlorine. Also reduces odors and discoloration from incoming water.

Features include Quick-Disconnect, 1/4 turn installation.

Filter lasts 1500 gallons or 1 year, whichever comes first. (Replacement Filter is # 102502)

Size: 3-1/4” Outside Diameter x 12-1/2” length Inlet: 3/8” Outlet: 1/4” Max Flow Rate: .75 GPM Water Temp: 40-120F Initial Pressure Drop: 2-5 PSI Max Line Pressure: 105 PSI Min Line Pressure: 20PSI

Automatic inlet shut-off valve that closes when filter is removed. Hands never touch the actual filter media and, therefore, limit the potential for introduction of bacteria. Outer protective wrap. Spun Polypropylene prefilter mesh to prevent large, coarse sediment and particles from entering and clogging filter media. High-grade filter is made with activated carbon and patented ATS lead-removal media. Radial flow-thru design provides more surface area for untreated water while final filter mesh prevents loose carbon from entering water.

Tested to the following NSF International Standards: ANSI/NSF Standard 42 Chlorine-Class 1, Particulate-Class 1, and Taste and Odor. ANSI/NSF Standard 53 for Reduction of Lead and Cyst.

Manufacturer Info

Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.

Specifications


Kully Item #	102659
Manufacturer	Elkay
Model #	EWF172
UPC Code	094902210629
Part Type	Filter / Strainers

Documents

Installation Guide (37.25 KB)

Spec Sheet (55.44 KB)

Write Your Own Review

You're reviewing: Elkay EWF172 Water Filter Kit

How do you rate this product? *

	1 star	2 stars	3 stars	4 stars	5 stars
Rating

*Nickname
*Summary of Your Review
*Review

Questions (1)

vote

Q: Does this filter unit install outside of Elkay cabinet? Is it installed on cold water inlet prior to entering cabinet? Are their any issues with water psi not having enough stream height?

Answer

Posted on Tuesday, March 28, 2017 on product Elkay EWF172 Water Filter Kit

0
vote

A:
Those are some great questions! This filter kit is installed on the inside of the drinking fountain and is attached to the main water line that feeds into the fountain. The only time that this filter would cause a water pressure issue are if it needs to be changed, which is about once every year.

If you have any other questions our experts are here to help! Call or text 800-518-5388

Posted by Kully Supply on Tuesday, March 28, 2017
