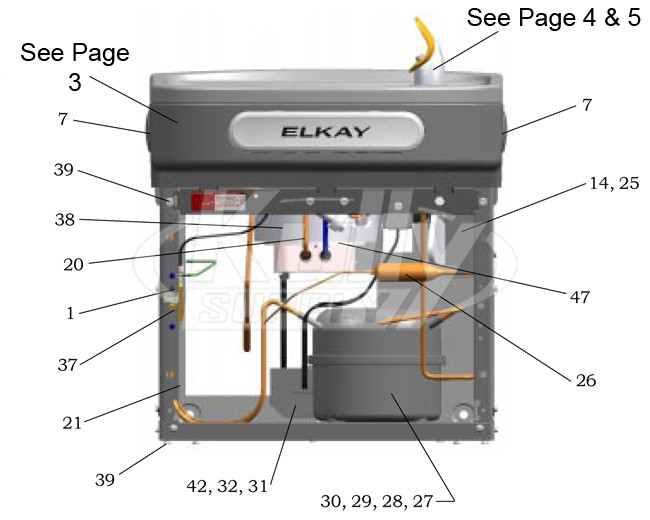

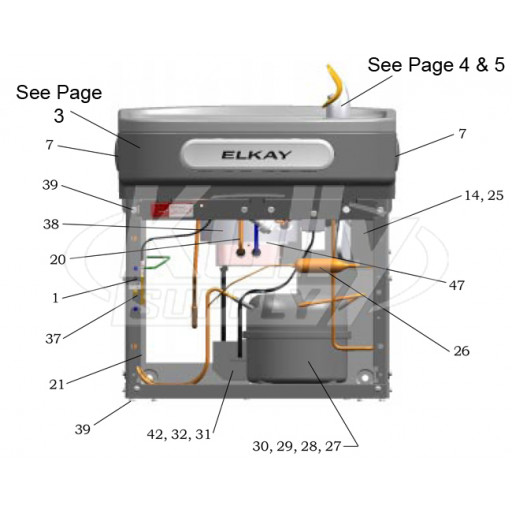

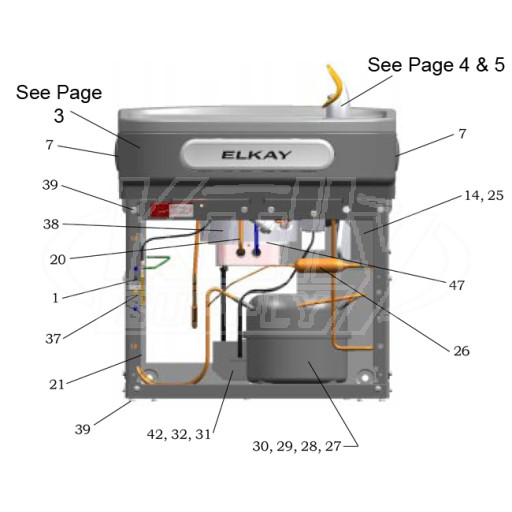

Elkay EZ(S).A Parts Breakdown

Elkay EZ(S).A Parts Breakdown

Item #: breakdown-EZ(S).A

Model: EZ(S).A (duplicate)
|
Manufacturer: Elkay

How to use this page:

1. Identify the part(s) you need in the image.

2. Look for the corresponding "Item #" in the list below.

3. Add item to cart

4. Click on the item to view more details

Spec Sheet

Part #	Part Details	Price	Options
1	Elkay 11-14114-43-890 SCREW-#8-36 X .38 TRI-LOBED (Discontinued) Item #: 134747 Learn More	More Info
2	Elkay 56229C Upper Shroud (with Front and Side Push Bars) Item #: 107621 Learn More	List Price: $111.00 $99.90 You Save 10%
2	Elkay 56230C Upper Shroud w/ Front Push Button (Discontinued) Item #: 102785 Learn More	List Price: $81.95 $65.50 You Save 20%	More Info
3	Elkay 35948C Push Bar Switch (Discontinued) Item #: 102468 Learn More	More Info
4	Elkay 36216C Wiring Assembly (Front/Side Pushbars) Item #: 106462 Learn More	$61.20
4	Elkay 36217C ASSY -WIRING FRNT PSH Item #: 136069 Learn More	$25.73
5	Elkay 36161C White Power Jumper Wire Item #: 133510 Learn More	$11.55
5	Elkay 36162C Black Jumper Wire Item #: 133511 Learn More	$6.60
6	Elkay 55999C EZ-Series Drinking Fountain Front Pushbar Item #: 102484 Learn More	$40.83
7	Elkay 56002C EZ-Series Drinking Fountain Side Pushbar Item #: 102485 Learn More	$15.42
7	Elkay 56074C Push-Filler Side (Discontinued) Item #: 106708 Learn More	More Info
8	Elkay 56118C Drain Gasket (Discontinued) Item #: 102488 Learn More	More Info
9	Elkay 56182C Drain Adapter Bracket (Discontinued) Item #: 106092 Learn More	More Info
10	Elkay 75580C Bubbler Kit Nut (Discontinued) Item #: 106824 Learn More	More Info
10	Elkay 70012C Lock Nut Item #: 102822 Learn More	$21.00
11	Elkay 61314C Valve Regulator Cartridge (Green Spring) Item #: 102539 Learn More	$40.83
12	Elkay Cartridge Holder 50986C Item #: 102478 Learn More	$43.75
13	Elkay 27846C SHRD-TOP FAN EZ (Discontinued) Item #: 135596 Learn More	$11.11	More Info
14	Elkay 27847C SHRD-BOTTOM FAN EZ (Discontinued) Item #: 135597 Learn More	$19.48	More Info
15	Elkay 36159C Power Cord (Discontinued) Item #: 133509 Learn More	More Info
15	Elkay 35980C EZ Power Cord Item #: 136006 Learn More	List Price: $54.00 $48.60 You Save 10%
16	Elkay 30664C Fan Blade (Discontinued) Item #: 106616 Learn More	More Info
17	Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued) Item #: 106370 Learn More	More Info
18	Elkay 31490C Fan Motor (Discontinued) Item #: 102518 Learn More	More Info
19	Elkay 70009C Exp-Screw Furn w/AL Motor Item #: 106633 Learn More	More Info
21	Elkay 27416C Wrapper Panel w/louvers EZ (SS) Item #: 106434 Learn More	List Price: $203.00 $182.70 You Save 10%
21	Elkay 27413C Panel- Wrapper EZ (L) Item #: 106327 Learn More	List Price: $119.00 $107.10 You Save 10%
21	Elkay 27872C Wrapper Panel EZ Stainless Steel (Discontinued) Item #: 106432 Learn More	More Info
21	Elkay 27874C PANEL-WRAPPER D EZ (L) (Discontinued) Item #: 135598 Learn More	More Info
21	Elkay 28361C WRAPPER-EZ- (M) Item #: 135734 Learn More	$272.96
22	Elkay 40322C Stream Breaker Item #: 102823 Learn More	$15.40
23	Elkay 50171C ORING-.364ID X .070 (Discontinued) Item #: 136257 Learn More	More Info
24	Elkay 50314C Flow Straightner (Discontinued) Item #: 107844 Learn More	More Info
25	Elkay 62152C Condenser (Discontinued) Item #: 107630 Learn More	More Info
25	Elkay 66743C Condenser (Discontinued) Item #: 133604 Learn More	More Info
26	Elkay 66703C DRIER-134A (Discontinued) Item #: 136559 Learn More	More Info
27	Elkay 10-15161-43-550 Stud (Discontinued) Item #: 110862 Learn More	$6.13	More Info
28	Elkay 10-08067-40-570 Grommet (Discontinued) Item #: 110863 Learn More	More Info
29	Elkay 19037000 Clip (Discontinued) Item #: 110864 Learn More	More Info
30	Elkay 36094C Compressor Service Pak 115V (Discontinued) Item #: 106299 Learn More	More Info
31	Elkay 35959C Relay (Discontinued) Item #: 102705 Learn More	More Info
32	Elkay 35768C Cover Relay (Discontinued) Item #: 129695 Learn More	More Info
33	Elkay 66576C HEATX-BARRIER FREE (Discontinued) Item #: 136522 Learn More	More Info
34	Elkay 66721C TUBE -DRAIN EZ (Discontinued) Item #: 136567 Learn More	More Info
35	Elkay 70444C Hose Clamp Item #: 106091 Learn More	More Info
36	Elkay 55001109 Basin - Stainless Steel Item #: 106280 Learn More	List Price: $181.00 $162.90 You Save 10%
37	Elkay 31513C Cold Control Thermostat Item #: 102467 Learn More	$43.20
38	Elkay 66533C Evaporator (Discontinued) Item #: 102737 Learn More	More Info
38	Elkay 66534C Evaporator Assembly (Discontinued) Item #: 102777 Learn More	More Info
39	Elkay 70002C Screw Item #: 102509 Learn More	More Info
40	Elkay 56011C Bubbler Guard (Discontinued) Item #: 107210 Learn More	More Info
41	Elkay 55997C Pedestal (Discontinued) Item #: 107133 Learn More	More Info
42	Elkay 36158C Overload 115V (Discontinued) Item #: 106323 Learn More	More Info
43	Elkay 28401C Wall Hanger Bracket Item #: 102657 Learn More	$24.75
44	Elkay 56082C Cartridge Hold Open Nut (Discontinued) Item #: 102660 Learn More	More Info
45	Elkay 56073C Flexi-Guard Bubbler Head (Discontinued) Item #: 102486 Learn More	More Info
46	Elkay 35981C Drinking Fountain Solenoid Valve Item #: 102469 Learn More	List Price: $114.00 $104.41 You Save 8%
47	Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48" Item #: 102487 Learn More	$15.40
48	Elkay 0000001192 Flat Black Gasket Item #: 102517 Learn More	$12.60
49	Elkay 45392C Vandal Resistant Bubbler (Discontinued) Item #: 133528 Learn More	More Info
50	Elkay 15009C Bubbler Head Nipple Item #: 102461 Learn More	$50.40	More Info
51	Elkay 56213C Panel-Access Item #: 136365 Learn More	$8.80
52	Elkay 75532C Screw (Discontinued) Item #: 107284 Learn More	More Info
NS	Elkay 75635C SCREW-#10-16 X .75 PTHD TEKS Item #: 136695 Learn More	$7.84

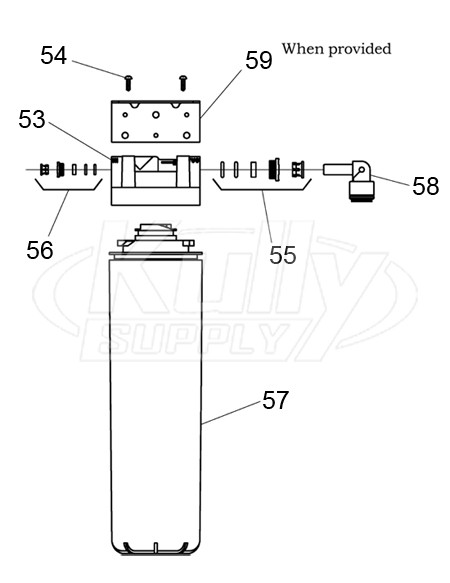

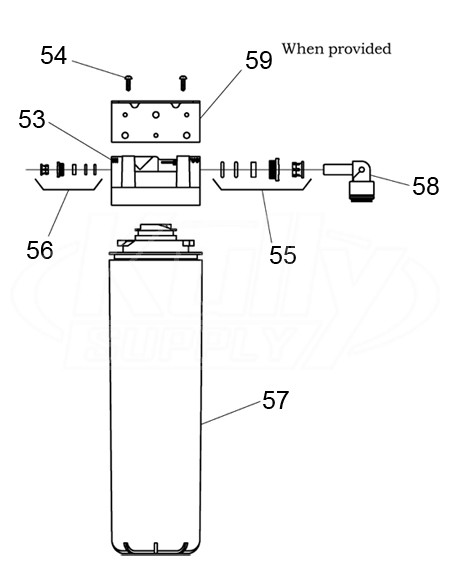

53	Elkay 51294C Filter Housing Head Item #: 102511 Learn More	$39.14	More Info
54	Elkay 70792C Screw Item #: 107324 Learn More	$6.60
55	Elkay 70823C Fitting - Superseal 3/8(10mm) Item #: 106622 Learn More	$15.00
56	Elkay 70822C Fitting - Superseal 1/4 (6mm) (Discontinued) Item #: 106623 Learn More	More Info
57	Elkay 51299C Drinking Fountain Replacement Filter (1500 Gallons) Item #: 102502 Learn More	$94.17
58	Elkay 70818C Elbow Fitting 3/8 Stem 3/8 Tube Item #: 102880 Learn More	$27.50
59	Elkay 22490C BRKT -FILTER MOUNTING Item #: 135271 Learn More	$32.50
