Elkay EZF(S).B Drinking Fountain Parts Breakdown

  • Item #: breakdown-EZF(S).B
  • |
  • Model: EZF(S).B
  • |
  • Manufacturer: Elkay

How to use this page:

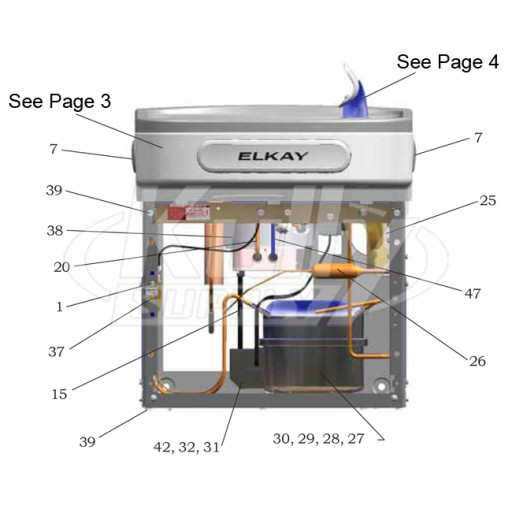

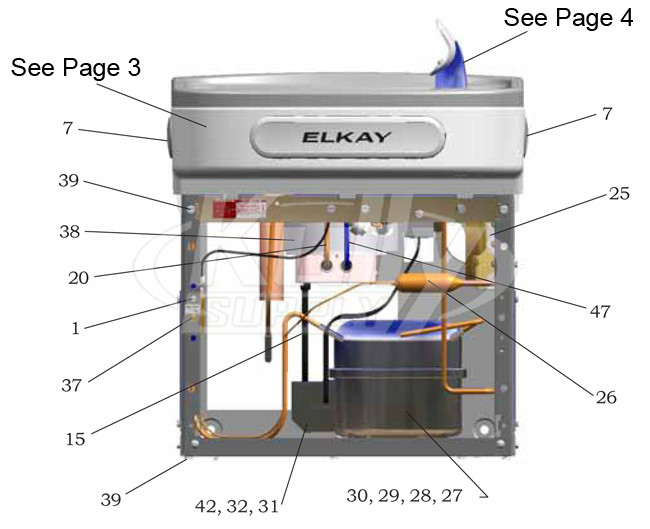

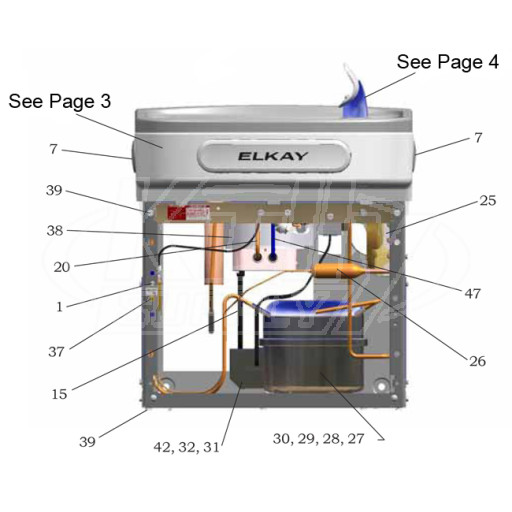

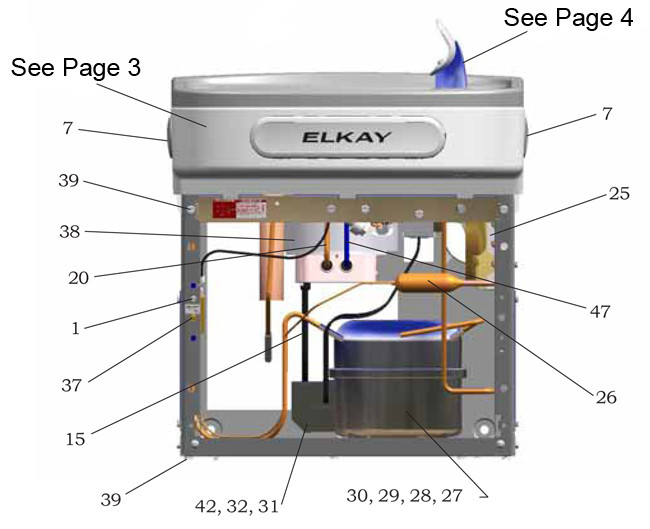

1. Identify the part(s) you need in the image.
2. Look for the corresponding "Item #" in the list below.
3. Add item to cart
-or-
4. Click on the item to view more details

Part # Image Part Details Price Options
1 Elkay 98898C EZ Hardware Kit Item #: 162848 Learn More
$21.00
2a Elkay 56229C Upper Shroud (with Front and Side Push Bars) Item #: 107621 Learn More
List Price: $111.00 $99.90 You Save 10%
2b Elkay 56230C Upper Shroud w/ Front Push Button (Discontinued) Item #: 102785 Learn More
List Price: $81.95 $65.50 You Save 20%
More Info
3 Elkay 35948C Push Bar Switch (Discontinued) Item #: 102468 Learn More
More Info
4a Elkay 36216C Wiring Assembly (Front/Side Pushbars) Item #: 106462 Learn More
$61.20
4b Elkay 36217C ASSY -WIRING FRNT PSH Item #: 136069 Learn More
$25.73
5a Elkay 36161C White Power Jumper Wire Item #: 133510 Learn More
$11.55
5b Elkay 36162C Black Jumper Wire Item #: 133511 Learn More
$6.60
6 Elkay 55999C EZ-Series Drinking Fountain Front Pushbar Item #: 102484 Learn More
$40.83
7a Elkay 56002C EZ-Series Drinking Fountain Side Pushbar Item #: 102485 Learn More
$15.42
7b Elkay 56074C Push-Filler Side (Discontinued) Item #: 106708 Learn More
More Info
8 Elkay 56118C Drain Gasket (Discontinued) Item #: 102488 Learn More
More Info
9 Elkay 98900C Drain Kit - for EZTL Dual-Station RIGHT Unit Item #: 162840 Learn More
$46.25
10a Elkay 75580C Bubbler Kit Nut (Discontinued) Item #: 106824 Learn More
More Info
10b Elkay 70012C Lock Nut Item #: 102822 Learn More
$21.00
11-12 & 44 Elkay 1000001913 Green Spring Kit with Hold Open Nut Item #: 163226 Learn More
List Price: $68.00 $61.20 You Save 10%
11 Elkay 61314C Valve Regulator Cartridge (Green Spring) Item #: 102539 Learn More
$40.83
12 Elkay Cartridge Holder 50986C Item #: 102478 Learn More
$43.75
13 Elkay 56213C Panel-Access Item #: 136365 Learn More
$8.80
14 Elkay 75532C Screw (Discontinued) Item #: 107284 Learn More
More Info
15a Elkay 36159C Power Cord (Discontinued) Item #: 133509 Learn More
More Info
15c Elkay 35980C EZ Power Cord Item #: 136006 Learn More
List Price: $54.00 $48.60 You Save 10%
16 Elkay 30664C Fan Blade (Discontinued) Item #: 106616 Learn More
More Info
17-19 & 21 Elkay 98775C Fan Motor Assembly Kit Item #: 162844 Learn More
List Price: $130.00 $117.00 You Save 10%
17 Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued) Item #: 106370 Learn More
More Info
18 Elkay 31490C Fan Motor (Discontinued) Item #: 102518 Learn More
More Info
19 Elkay 70009C Exp-Screw Furn w/AL Motor Item #: 106633 Learn More
More Info
20 Elkay 66723C ASSY -TUBE EVAP TO BASE Item #: 136568 Learn More
More Info
21 Elkay 56237C Shroud-Fan (Discontinued) Item #: 136367 Learn More
More Info
22 Elkay 40322C Stream Breaker Item #: 102823 Learn More
$15.40
23 Elkay 50171C ORING-.364ID X .070 (Discontinued) Item #: 136257 Learn More
More Info
24 Elkay 50314C Flow Straightner (Discontinued) Item #: 107844 Learn More
More Info
25-26 Elkay 98776C Condenser/Drier Kit Item #: 162845 Learn More
List Price: $99.00 $89.10 You Save 10%
25 Elkay 66743C Condenser (Discontinued) Item #: 133604 Learn More
More Info
26 Elkay 66703C DRIER-134A (Discontinued) Item #: 136559 Learn More
More Info
27 Elkay 10-15161-43-550 Stud (Discontinued) Item #: 110862 Learn More
$6.13
More Info
28 Elkay 10-08067-40-570 Grommet (Discontinued) Item #: 110863 Learn More
More Info
29 Elkay 19037000 Clip (Discontinued) Item #: 110864 Learn More
More Info
30 Elkay 36322C Compressor with Overload and Relay Item #: 162634 Learn More
List Price: $415.00 $373.50 You Save 10%
31-32 &42 Elkay 98535C Overload, Relay and Cover Kit - 115V Item #: 140041 Learn More
List Price: $45.00 $41.37 You Save 8%
31 Elkay 35959C Relay (Discontinued) Item #: 102705 Learn More
More Info
32 Elkay 35768C Cover Relay (Discontinued) Item #: 129695 Learn More
More Info
33 Elkay 66576C HEATX-BARRIER FREE (Discontinued) Item #: 136522 Learn More
More Info
34 Elkay 97970C Drain Fitting - for EZ/LZ Single Station Item #: 106982 Learn More
$48.60
35 Elkay 70444C Hose Clamp Item #: 106091 Learn More
More Info
36 Elkay 55001109 Basin - Stainless Steel Item #: 106280 Learn More
List Price: $181.00 $162.90 You Save 10%
37 Elkay 31513C Cold Control Thermostat Item #: 102467 Learn More
$43.20
38 Elkay 66533C Evaporator (Discontinued) Item #: 102737 Learn More
More Info
38 Elkay 98724C Evaporator Replacement Kit Item #: 151228 Learn More
$296.10
39 Elkay 70002C Screw Item #: 102509 Learn More
More Info
40 Elkay 56011C Bubbler Guard (Discontinued) Item #: 107210 Learn More
More Info
41 Elkay 55997C Pedestal (Discontinued) Item #: 107133 Learn More
More Info
42 Elkay 36158C Overload 115V (Discontinued) Item #: 106323 Learn More
More Info
43 Elkay 28401C Wall Hanger Bracket Item #: 102657 Learn More
$24.75
44 Elkay 56082C Cartridge Hold Open Nut (Discontinued) Item #: 102660 Learn More
More Info
45 (23,40 &41) Elkay 92715C Flexi-Guard Bubbler Head Kit Item #: 102494 Learn More
List Price: $42.00 $37.80 You Save 10%
45 Elkay 56073C Flexi-Guard Bubbler Head (Discontinued) Item #: 102486 Learn More
More Info
46 Elkay 35981C Drinking Fountain Solenoid Valve Item #: 102469 Learn More
List Price: $114.00 $104.41 You Save 8%
47 Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48" Item #: 102487 Learn More
$15.40
48 Elkay 0000001192 Flat Black Gasket Item #: 102517 Learn More
$12.60
49 Halsey Taylor 97446C Vandal Resistant Bubbler Kit Item #: 130869 Learn More
List Price: $174.00 $156.60 You Save 10%
50 Elkay 15009C Bubbler Head Nipple Item #: 102461 Learn More
$50.40
More Info
51 Elkay 98169C Solenoid Kit (cap, screen, and o-ring) Item #: 106136 Learn More
$31.25
NS (a) Elkay 27416C Wrapper Panel w/louvers EZ (SS) Item #: 106434 Learn More
List Price: $203.00 $182.70 You Save 10%
NS (b) Elkay 27413C Panel- Wrapper EZ (L) Item #: 106327 Learn More
List Price: $119.00 $107.10 You Save 10%
NS (a) Elkay 27872C Wrapper Panel EZ Stainless Steel (Discontinued) Item #: 106432 Learn More
More Info
NS (b) Elkay 27874C PANEL-WRAPPER D EZ (L) (Discontinued) Item #: 135598 Learn More
More Info
NS Elkay 28361C WRAPPER-EZ- (M) Item #: 135734 Learn More
$272.96
NS Elkay 75635C SCREW-#10-16 X .75 PTHD TEKS Item #: 136695 Learn More
$7.84
52 Elkay 51294C Filter Housing Head Item #: 102511 Learn More
$39.14
More Info
53 Elkay 70792C Screw Item #: 107324 Learn More
$6.60
54 Elkay 70823C Fitting - Superseal 3/8(10mm) Item #: 106622 Learn More
$15.00
55 Elkay 98532C Tubing, O-Ring & Fitting Kit Item #: 140038 Learn More
$81.90
56 Elkay 51299C Drinking Fountain Replacement Filter (1500 Gallons) Item #: 102502 Learn More
$94.17
57 Elkay 70818C Elbow Fitting 3/8 Stem 3/8 Tube Item #: 102880 Learn More
$27.50
58 Elkay 22490C BRKT -FILTER MOUNTING Item #: 135271 Learn More
$32.50
