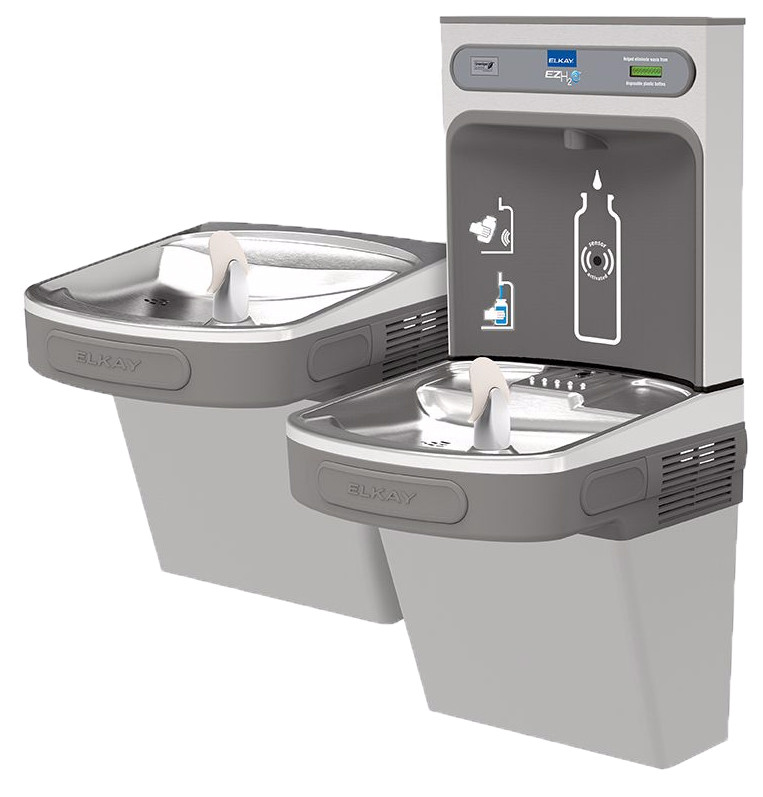

Elkay EZH2O EZSTL8WSLK Dual-Station Drinking Fountain with Bottle-Filling Station

Items Included

• Drinking Fountain
• Drinking Fountain with 8GPH Cooling System
• Mounting Brackets – Qty-2
• Power Cord
• Bottle-Filling Station

Description

This Elkay EZH2O Dual-Station Drinking Fountain with Bottle-Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation. Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler). Fill rate is 1.1 GPM. Visual filter monitor with LED filter status indicator for when filter change is necessary. Green Ticker informs the user of the number of 20 oz. plastic water bottles saved from waste. Laminar flow provides clean fill with minimal splash. Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew. Real drain system eliminates standing water. Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms. Rated for indoor use.

Features and Benefits

• Sanitary, Touchless Activation: Auto 20-second shut-off (Bottle Filler)
• Easy-touch Activation: Front and side pushbar controls (Cooler)
• Laminar Flow: Provides minimal splash
• Real Drain System: Eliminates standing water
• Visual User Interface display includes: Green Ticker (counts bottles saved from waste), and LED Visual Filter Monitor which shows when replacement is necessary (if you get the filtered option)
• Flexi-Guard Safety Bubbler: Utilizes an infused anti-microbial pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact.
• Vandal-Resistant Bubbler: One-piece, heavy-duty construction (option at additional cost) (includes “VR” code in model no.)
• Cooler Panel Finishes: Light Gray Granite Vinyl Clad Steel or Stainless Steel

Construction

• Stainless Steel Basin: Vandal resistant, with integral drain and easy to maintain
• Galvanized Structural Steel Cooler: Provides structural integrity
• Stainless Steel Bottle Filler Wrapper: Will include ABS plastic alcove
• Cooler Cabinet Options: Available as Light Gray Granite Vinyl Clad Steel or Stainless Steel (additional cost) construction
• Flexi-Guard Safety Bubbler: Utilizes an infused anti-microbial pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact.
• Vandal-Resistant bubbler: One-piece, heavy-duty construction (option at additional cost)

Cooling system

• Refrigerated: 8GPH
• Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication.
• Condenser: Fan cooled, copper tube with aluminum fins. The fan motor is permanently lubricated.
• Cooling Unit: Combination tube-tank type. Self-cleansing. Continuous copper tubing with stainless steel tank. Fully insulated with EPS foam which meets UL requirements for self-extinguishing material.
• Refrigerant Control: Refrigerant R134a is controlled by accurately calibrated capillary tube.
• Temperature Control: Easily accessible enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements.
