Description
Features and Benefits

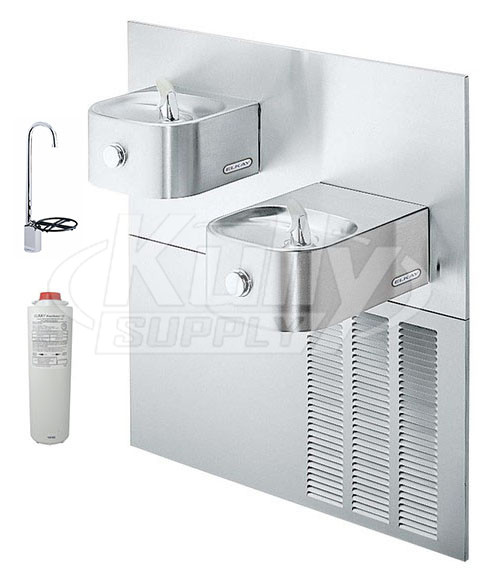

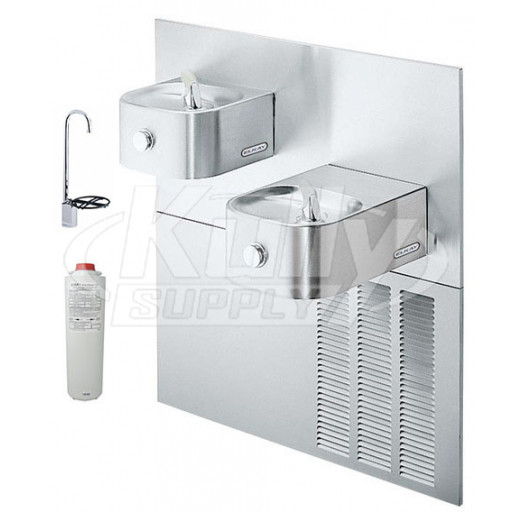

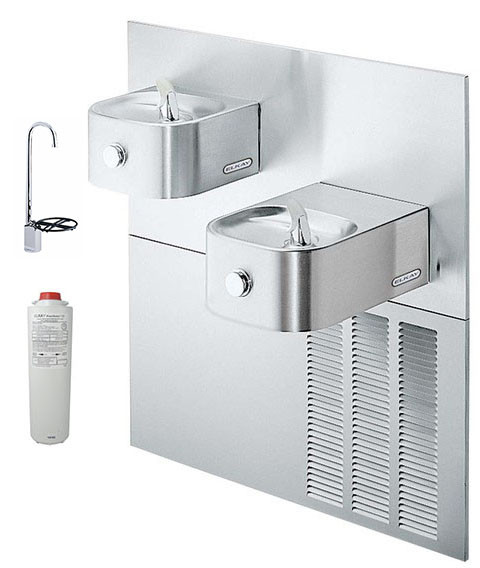

Fully exposed two-level fountain basins are #300 series stainless steel polished to a lustrous satin finish with high shine outer edge. One fountain positioned lower on the right for A.D.A compliance. The other positioned on the left is at standard height. Fountains have contoured basin that minimizes splashing. Flexi-Guard® Safety bubblers and easy to operate, fully functional, vandal-resistant front push buttons. Flow regulator provides constant stream from 20 to 105 psi water pressure. Vandal-resistant bottom cover plates included.
- All stainless steel polished to a satin finish
- Fountains feature the Flexi-Guard® Safety Bubbler
- WaterSentry® VII 1500-gallon capacity Filtration System, certified to NSF/ANSI 42 & 53 (Lead, Class 1 Particulate, Chlorine, Taste & odor)
- Rated for indoor use
Cooling System
- Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication.
- Condenser: Fan cooled. Fan motor is permanently lubricated.
- Cooling Unit: Combination tube-tank type. Continuous copper tubing with stainless steel tank. Fully insulated with EPS foam which meets UL requirements for self-extinguishing material.
- Refrigerant control: Refrigerant R134a is controlled by accurately calibrated capillary tube.
- Temperature Control: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements, easily accessible by removing lower grille panel.
Construction
Two-level fountain furnished complete with Flexi-Guard® fully assembled with front push button, flow regulator (120 to 105 psi), stainless steel back panel. LK464 drain & trap assembly included.
- Contoured basin offers large strike area to minimize splashing
- Includes removable stainless steel front lower panel with ventilating grill encloses refrigeration and plumbing
- Bottom Cover plate prevents vandalism
- MF200 Mounting frame is included with Models LNTEM8K, LNTEM8FK, LNTEM82K, LNTEM83K.
- For Models LNTE8K, LNTE8FK, LNTE82K, MF200 must be pre-ordered for installation. Frame allows flush mounting finished wall.
