Description
GENERAL

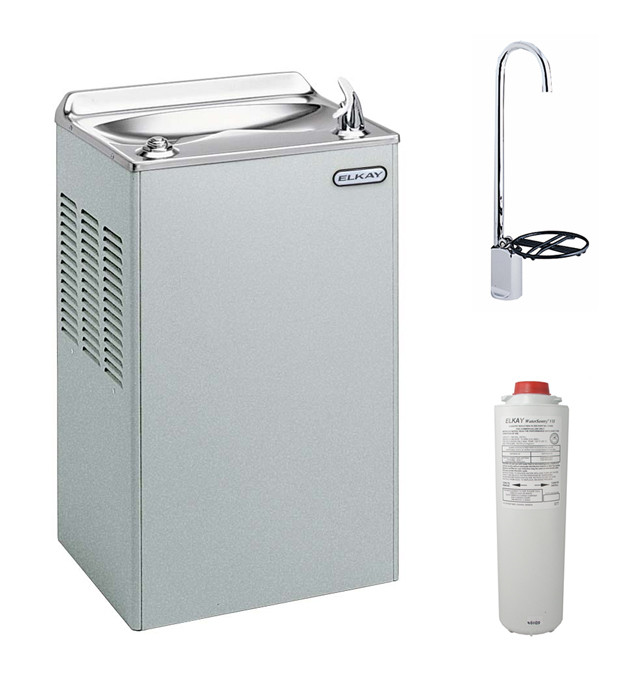

- Self-contained, electric refrigerated, wall hung water cooler with LK1114 glass filler
- Capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient.
- Non-pressurized tank system is standard.
- Non-pressurized water tank is located after bubbler valve, so that tank is subject to line pressure only when valve button is pressed.
NO LEAD DESIGN
This water cooler complies with the lead-free definition in the safe drinking water act of 1986 and lead contamination control act of 1988. Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free materials. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne particulate of 140 microns and larger prior to their entry into the water cooler.
COOLING SYSTEM
- Motor Compressor: Hermetically sealed, reciprocating type, 115V, 60 Hz single phase. Sealed-in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug.
- Condenser: Fan cooled, copper tube with aluminum fins. (EWA4 has steel tube with steel fins.) Fan motor is permanently lubricated.
- Cooling Unit: Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing material.
- Refrigerant Control: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free performance.
- Temperature Control: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirement.
