Description
GENERAL INFORMATION

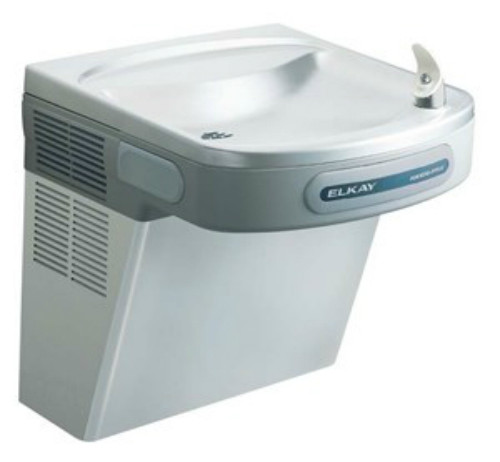

- Self-contained, wall hung electric refrigerated water cooler
- Chilling capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient
FILTER MONITOR
Filter Monitor records water usage and advises users when filter needs changing. The three light system Green (filter below 80% of capacity) Yellow (80% to 90% of capacity and Red (Filter needs to be replaced) helps maintain that user always has the best filtered water available to them.
ADA COMPLIANT
The Elkay EZS8L Water Cooler comply with the requirements of A.D.A. (Americans with Disabilities Act) when properly installed. Also meets the guidelines for children’s environments providing the floor to orifice height is 30” or less and proper clear floor space is provided for parallel approach. (Based on Architectural and Transportation Barriers Compliance Board final ruling.) Check Local and State Codes.
NO LEAD DESIGN
These Water Coolers are certified to be lead-free as defined by the Safe Drinking Water Act. Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free materials. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne particulate of 140 microns and larger prior to their entry into the water cooler.
Features and Benefits
- Hands-Free®sensor operation with 30-second auto shut-off and adjustable sensor range
- WaterSentry® VII 1500-gallon capacity Filtration System, certified to NSF/ANSI 42 & 53 (Lead, Class 1 Particulate, Chlorine, Taste & Odor)
- Visual Filter monitor advises when filter replacement is necessary and helps maintain that users always have the best filtered water available to them. Features a three light system of Green, Red and Yellow indicators.
- Extra deep basin minimizes splashing; with integral drain
- Exclusive Flexi-Guard® Safety bubbler
- Cooler panel finishes: Light Gray Granite Vinyl Clad Steel or Stainless Steel
- Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure
- Rated for Indoor use
Cooling System
- Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication.
- Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
- Cooling Unit: Combination tube-tank type. Self-cleaning. Continuous copper tubing with stainless steel tank. Fully insulated with EPS foam that meets UL requirements for self-extinguishing material.
- Refrigerant Control: Refrigerant R134a is controlled by accurately calibrated capillary tube.
- Temperature Control: Easily accessible enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Construction
- Electronic Hands-Free operation: On-off solenoid valve is actuated by an infrared light beam sensor. When light beam is interrupted by user in front of cooler, the sensor actuates to begin water dispensing. A built-in time delay is provided to prevent actuation by passerby traffic.
- Fountain Top: One piece stainless steel top, polished to a uniform Elkay satin luster finish
- Frame: Galvanized steel chassis support
- Exclusive Flexi-Guard Safety bubbler: Innovative design utilizes an infused anti-microbial pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact.
- Upper Shroud: Contoured shock-absorbing provides additional protection against accidental injury. No exposed fasteners.
- Removable Wrapper: One-piece design offers easy accessibility to interior.
- Cooler cabinet: Available as Light Gray Granite Vinyl Clad Steel or Stainless Steel (additional cost) construction
REPLACEMENT FILTER: 51299C (single)
Warranty
- 5 year limited warranty on the unit’s refrigeration system. Electrical components and water system are warranted for 12 months from date of installation or 18 months from factory shipment, whichever date falls first.
Manufacturer Info
Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
