Description

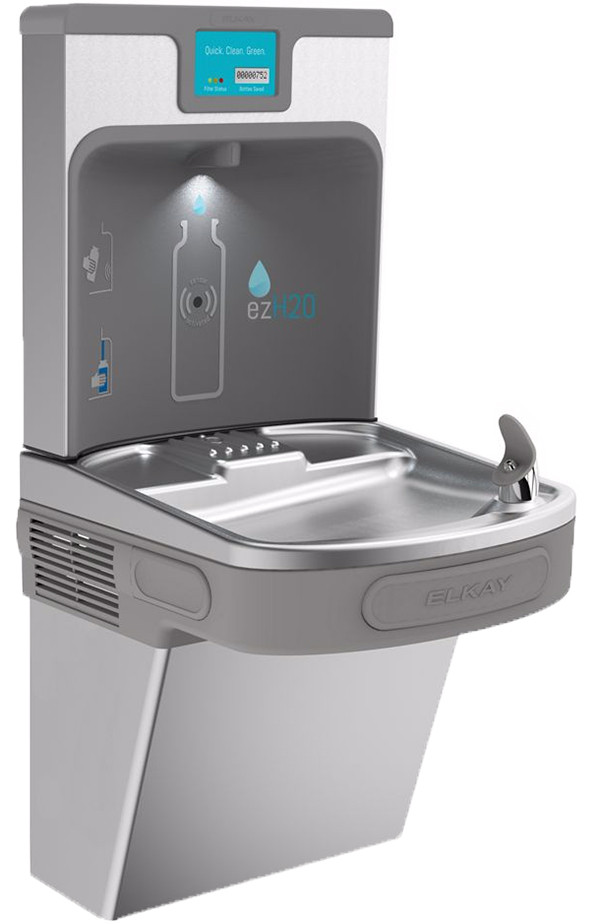

The Elkay Enhanced EZH2O Bi-Level Bottle Filling Station is our new line of indoor bottle filling stations with an updated look. This unit has the same features as the standard EZH20 bottle filling stations however with some added ingenuity. New features include: easy installation, energy saving options, easy change filters, a display screen, and a convenience light.
Features and Benefits
- Barrier-Free ADA Design: Meets adult or child ADA standards when properly installed
- Display Screen: Green Ticker (counts the quantity of 20 oz. plastic bottles of water served without the bottle), and visual LED Filter Monitor to indicate when replacement is necessary
- Energy Saving Feature: Turns off refrigeration at programmed times, and a Low-Energy LED light showcases the bottle filling area so you know when a bottle is full
- Easy-To-Install Universal Design: Improved bottle filler plumbing, no separate wall plugs for bottle filler & single unit, just plug it in & it works!
- WaterSentry Plus Filter: Features 6000 gallon capacity with an automatic filter reset status-swap out your filter and the unit resets itself automatically
- Sanitary, Touchless Activation: Auto 20-second shut-off (Bottle Filler)
- Easy-touch: Front and side pushbar controls (Cooler)
Construction
- Stainless Steel Basin: Vandal resistant, with integral drain and easy to maintain
- Galvanized structural steel cooler: Provides structural integrity
- Stainless Steel bottle filler wrapper: Will include ABS plastic alcove
- Cooler cabinet Options: Available as Light Gray Granite Vinyl Clad Steel or Stainless Steel (additional cost) construction
- Flexi-Guard Safety Bubbler: Utilizes an infused anti-microbial pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact.
- Vandal-Resistant bubbler: One-piece, heavy-duty construction (option at additional cost)
Cooling System
- Refrigerated: 8GPH
- Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication.
- Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
- Cooling Unit: Combination tube-tank type. Self-cleansing. Continuous copper tubing with stainless steel tank. Fully insulated with EPS foam which meets UL requirements for self-extinguishing material.
- Refrigerant Control: Refrigerant R134a is controlled by accurately calibrated capillary tube.
- Temperature Control: Electronic temperature control requires no adjustment
- Temperature Sensing Device: Fully solid-state temperature sensing has no moving parts.
Manufacturer Info
Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
