Description

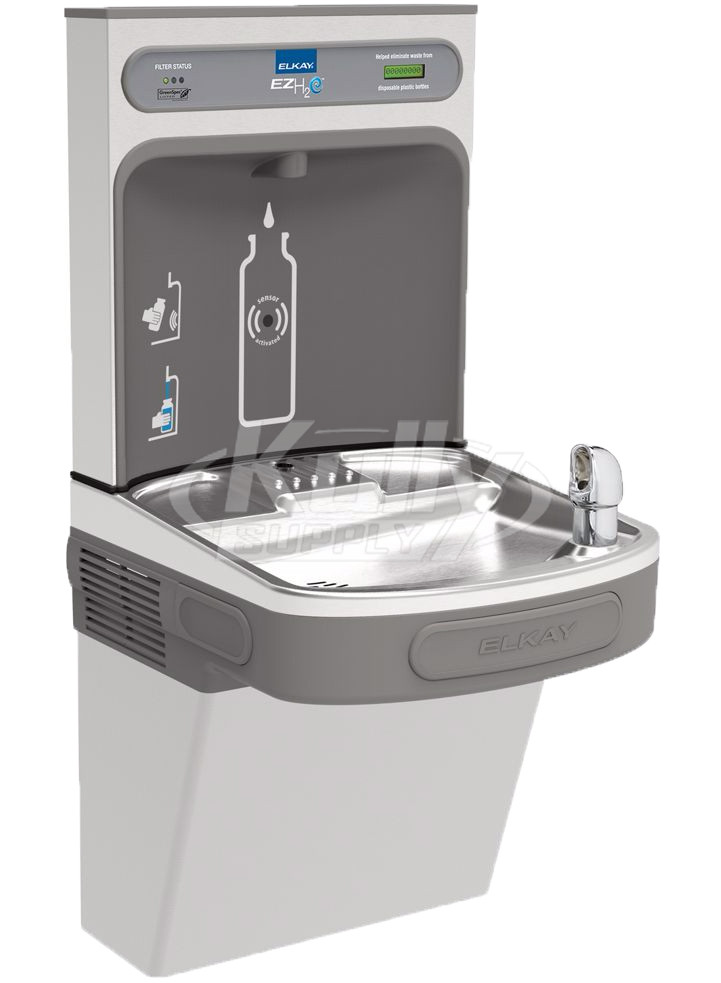

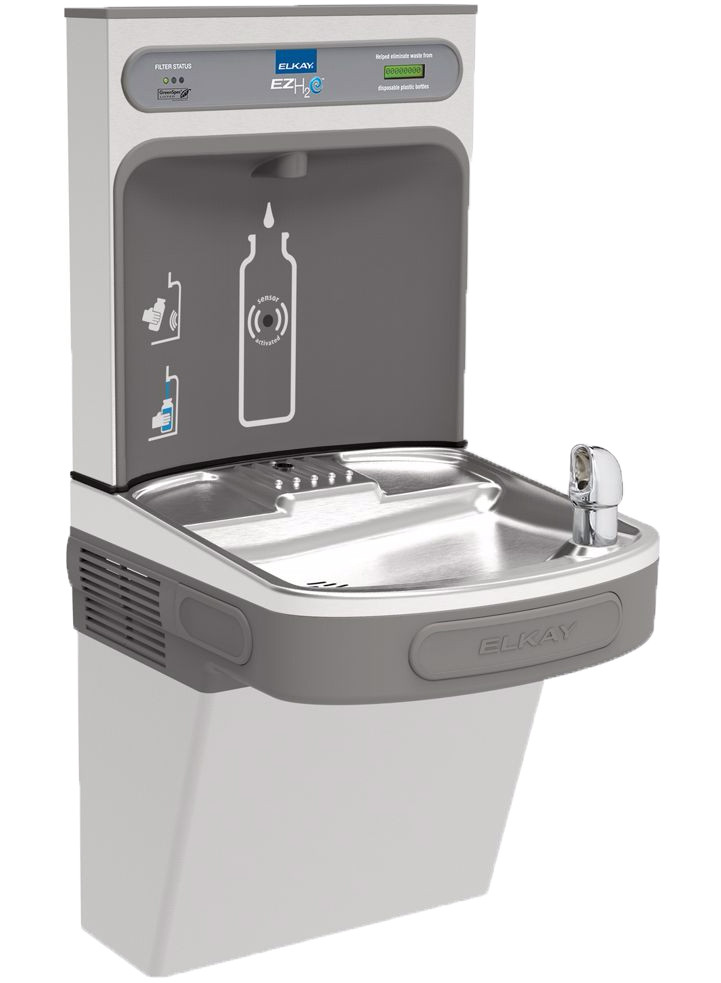

The Elkay EZH2O Bottle Filler Series is Elkay’s most popular bottle filling station. The Drinking Fountain and Bottle Filler are combined into one space saving and ADA (Americans with Disabilities Act) compliant unit. The Drinking Fountain features a Flexi-Guard Stream Saver Safety Bubbler, Integrated Silver Ion Anti-microbial Protection in key areas, and convenient Easy-Touch pushbars. The Bottle Filler is activated by a sanitary, touchless sensor with auto 20-second shut-off. The Quick Fill Rate of 1.1 GPM (gallons per minute) will fill re-useable bottles quickly and without splashing. The Green Ticker will keep a count of just how many bottles you have helped save from the landfill. There is one cooling unit that provides water to both the drinking fountain and the bottle filler.
Features and Benefits
- Sanitary, Touchless Activation: Auto 20-second shut-off (Bottle Filler)
- Easy-touch: Front and side pushbar controls (Cooler)
- WaterSentry Plus Filter: 3000-gallon capacity Filtration System, certified to NSF/ANSI 42 & 53 (Lead, Class 1 Particulate, Chlorine, Taste & Odor)
- Laminar Flow: Provides minimal splash
- Real Drain System: Eliminates standing water
- Visual User Interface display includes: Green Ticke (counts bottles saved from waste), and LED Visual Filter Monitor which shows when replacement is necessary
- Vandal-Resistant bubbler: One-piece, heavy-duty construction
- Cooler panel finishes: Light Gray Granite Vinyl Clad Steel or Stainless Steel
Construction
- Stainless Steel basin: Vandal resistant, with integral drain and easy to maintain
- Galvanized structural steel cooler: Provides structural integrity
- Stainless Steel bottle filler wrapper: Will include ABS plastic alcove
- Cooler cabinet Options: Available as Light Gray Granite Vinyl Clad Steel or Stainless Steel (additional cost) construction
Cooling System
- Refrigerated: 8GPH
- Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication.
- Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
- Cooling Unit: Combination tube-tank type. Self-cleansing. Continuous copper tubing with stainless steel tank. Fully insulated with EPS foam which meets UL requirements for self-extinguishing material.
- Refrigerant Control: Refrigerant R134a is controlled by accurately calibrated capillary tube.
- Temperature Control: Easily accessible enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements.
Manufacturer Info
Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
