Elkay 98324C Cane Apron

Elkay 98324C Cane Apron

Item #: 133460
|
Model: 98324C
|
Manufacturer: Elkay

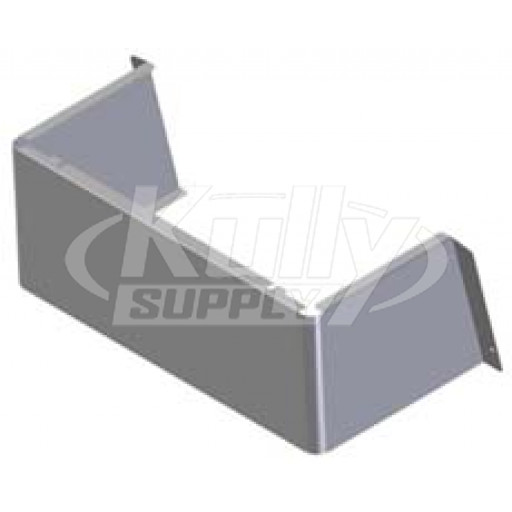

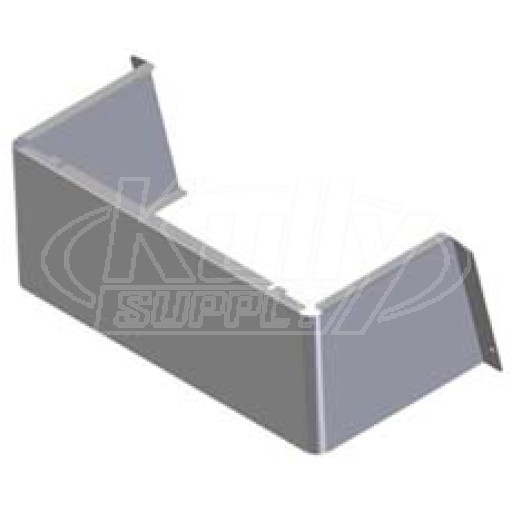

The Halsey Taylor 98324C Cane Apron is a stainless steel cane apron intended for Elkay/Halsey Taylor HAC, HVR, EMABF & VRC series drinking fountains.

The cane apron is designed to provide symmetry along the front of the drinking fountains.

For HAC, HVR, EMABF & VRC Series (Stainless)

This Item Typically Ships in 1-2 Weeks

List Price: $327.00 $294.30 You Save 10%

Product Description
Specifications
Reviews (0)
Questions (2)

Product Description Specifications Reviews (0) Questions (2)

Questions:

vote

Q: How is this connected to the existing Hi-Lo drinking fountain? There are no instruction manuals on the webpage. Thank you, Ted

Answer

Posted on Tuesday, March 28, 2017 on product Elkay 98324C Cane Apron

0
vote

A:
The Halsey Taylor 98324C Cane Apron (Part #133460) is attached the the fountain using the screws that are provided. Below are the installation instructions and required tools to attach the Cane Apron.

Required Tools
• Pinned Torx Head Driver
• Power Drill with 1/8” Drill Bit
• Hammer and Center Punch

1. Using cane apron as a template use a center punch to mark hole locations on front of left and right side panels.

2. Drill 1/8” diameter holes at marked locations. (Center punch hole locations before drilling). When drilling the right hand hole on refrigeration units, be certain to drill straight.
CAUTION: Keep the drill bit away from the refrigeration condenser. If the drill damages or punctures the condenser refrigeration tubing severe and expensive damage to the refrigeration system will result.

3.Loosen and remove (2) front screws from underside of cooler dispenser panels.

4. Install cane touch apron to underside of cooler dispenser panels and reuse fasteners removed in step 3 above.

5. Attach lower edges of apron to cooler side panels with screws provided. (Using two holes drilled in step 2 above)

If you have any other questions our experts are here to help! Call or text 800-518-5388

Posted by Kully Supply on Tuesday, March 28, 2017

vote

Q: How is this connected to the existing Hi-Lo drinking fountain? There are no instruction manuals on the webpage. Thank you, Ted

Answer

Posted on Tuesday, February 28, 2017 on product Elkay 98324C Cane Apron

0
vote

A: The Halsey Taylor 98324C Cane Apron (Part #133460) is attached the the fountain using the screws that are provided. Below are the installation instructions and required tools to attach the Cane Apron. Required Tools • Pinned Torx Head Driver • Power Drill with 1/8” Drill Bit • Hammer and Center Punch 1. Using cane apron as a template use a center punch to mark hole locations on front of left and right side panels. 2. Drill 1/8” diameter holes at marked locations. (Center punch hole locations before drilling). When drilling the right hand hole on refrigeration units, be certain to drill straight. CAUTION: Keep the drill bit away from the refrigeration condenser. If the drill damages or punctures the condenser refrigeration tubing severe and expensive damage to the refrigeration system will result. 3.Loosen and remove (2) front screws from underside of cooler dispenser panels. 4. Install cane touch apron to underside of cooler dispenser panels and reuse fasteners removed in step 3 above. 5. Attach lower edges of apron to cooler side panels with screws provided. (Using two holes drilled in step 2 above) If you have any other questions our experts are here to help! Call or text 800-518-5388

Posted by Kully Supply on Tuesday, February 28, 2017
