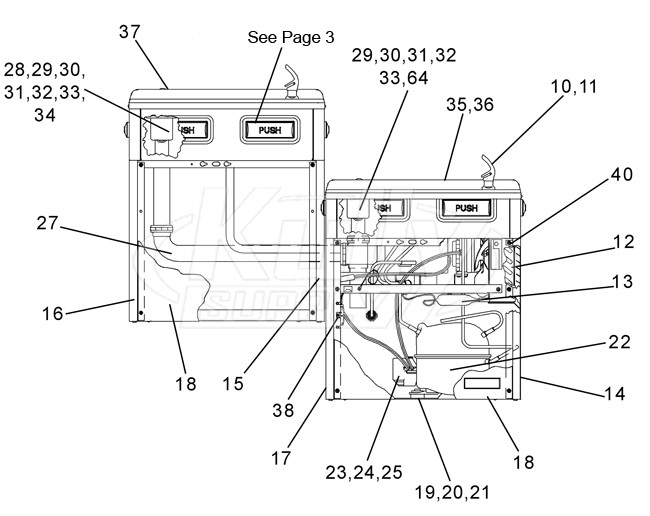

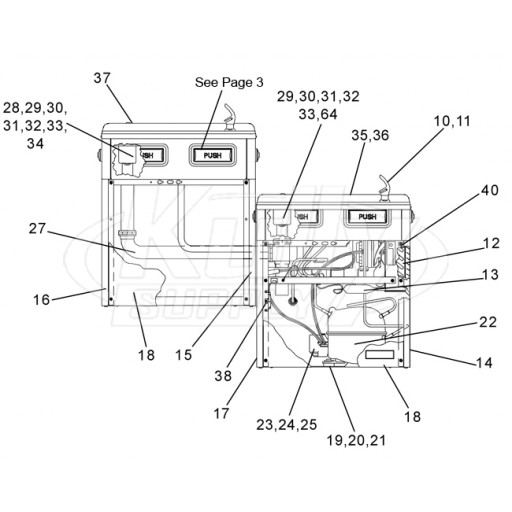

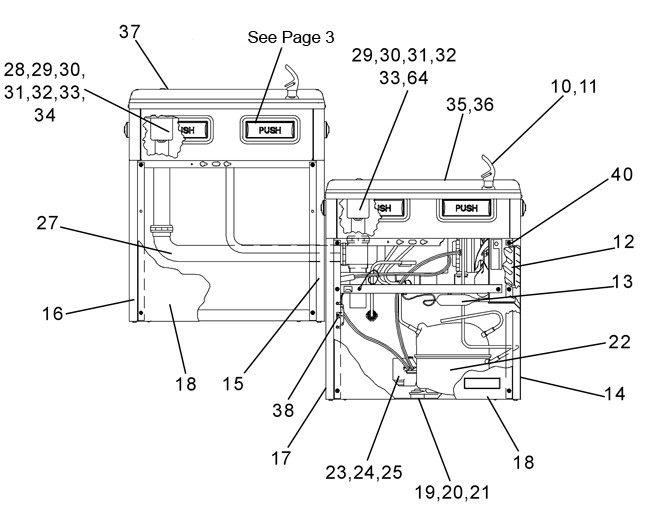

Halsey Taylor HACBLTX Parts Breakdown

  • Item #: breakdown-HACBLTX
  • |
  • Model: HACBLTX
  • |
  • Manufacturer: Halsey Taylor
Breakdown for post 1994 models: HAC8FSBLTXQ*1.
Part # Image Part Details Price Options
1 Elkay 31517C Cord-Power 115V (Discontinued) Item #: 129690 Learn More
More Info
2 Elkay 30699C Fan Blade Item #: 129536 Learn More
$23.15
More Info
3 Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued) Item #: 106370 Learn More
More Info
4 Elkay 31490C Fan Motor (Discontinued) Item #: 102518 Learn More
More Info
5 Elkay 70009C Exp-Screw Furn w/AL Motor Item #: 106633 Learn More
More Info
6 Elkay 22899C Fan Shroud (Discontinued) Item #: 135310 Learn More
More Info
7 Elkay 38417001 Screw (Discontinued) Item #: 107671 Learn More
More Info
9 Halsey Taylor 15012C Nipple-Bubbler (Discontinued) Item #: 15012C Learn More
More Info
10 Halsey Taylor Chrome-Plated Bubbler 51544C (Discontinued) Item #: 102522 Learn More
More Info
11 Elkay 0000001192 Flat Black Gasket Item #: 102517 Learn More
$12.60
12 Elkay 62152C Condenser (Discontinued) Item #: 107630 Learn More
More Info
12 Elkay 66743C Condenser (Discontinued) Item #: 133604 Learn More
More Info
13 Elkay 66202C Drier Item #: 106303 Learn More
$30.00
14 Elkay 28144C Right Hand Rear Panel (PV) Item #: 135640 Learn More
$46.46
14 Elkay 28145C PANEL-RH REAR (SS) (Discontinued) Item #: 135641 Learn More
$65.76
More Info
15 Halsey Taylor 28139C Platinum Vinyl Right Rear Panel (Left Unit) Item #: 136904 Learn More
$72.45
15 Hasley Taylor 28140C Stainless Steel Right Rear Panel (Left Unit) Item #: 136905 Learn More
$72.45
16 Elkay 22852C PANEL-LH REAR (PV)_HAC Item #: 135304 Learn More
$64.62
16 Elkay 22854C Left-Side High Rear Panel (SS) Item #: 130888 Learn More
$86.50
More Info
17 Elkay 28161C PANEL-LH REAR TL (PV) Item #: 135650 Learn More
List Price: $59.00 $54.18 You Save 8%
17 Halsey Taylor 28162C Stainless Steel Left Rear Panel (Refrig. Unit) Item #: 136899 Learn More
$66.55
18 Elkay 22844C Front Lower Panel (PV) Item #: 106218 Learn More
List Price: $44.00 $40.39 You Save 8%
18 Elkay 22955C Panel-Front Lower (SS) Item #: 106426 Learn More
List Price: $95.00 $85.50 You Save 10%
19 Elkay 10-15161-43-550 Stud (Discontinued) Item #: 110862 Learn More
$6.13
More Info
20 Elkay 10-08067-40-570 Grommet (Discontinued) Item #: 110863 Learn More
More Info
21 Elkay 19037000 Clip (Discontinued) Item #: 110864 Learn More
More Info
22 Elkay 35960C Compressor Serv Pak 115V Item #: 102805 Learn More
List Price: $624.00 $561.60 You Save 10%
23 Elkay 35959C Relay (Discontinued) Item #: 102705 Learn More
More Info
24 Elkay 35768C Cover Relay (Discontinued) Item #: 129695 Learn More
More Info
25 Elkay 36196C Overload Item #: 102706 Learn More
$32.50
26 Elkay 66532C HEATX-BARRIER FREE Item #: 136519 Learn More
$27.56
27 Elkay 40022C ASSY -TL WASTE CONN (Discontinued) Item #: 136082 Learn More
More Info
28 Elkay 45712C TUBE -WASTE LINE Item #: 136189 Learn More
$70.35
29 Elkay 75589C Drain Gasket (Discontinued) Item #: 102740 Learn More
More Info
30 Elkay 55884C Drain Elbow 1-1/4" Item #: 102495 Learn More
$30.00
More Info
31 Elkay 75588C Drain Nut (Discontinued) Item #: 102739 Learn More
More Info
32 Elkay 100147140560 Drain Gasket Item #: 102742 Learn More
$8.80
33 Elkay 10-26399-31-640 Drain Plug Item #: 102778 Learn More
$24.75
34 Halsey Taylor 16-02705-08-640 Strainer Plate Item #: 102520 Learn More
$13.48
35 Elkay 22893C (Discontinued) Item #: 135309 Learn More
More Info
36 Elkay 75532C Screw (Discontinued) Item #: 107284 Learn More
More Info
37 Elkay 10-06876-08-640 BUTTN-PLUG 3/4 Item #: 134660 Learn More
$11.00
38 Elkay 31513C Cold Control Thermostat Item #: 102467 Learn More
List Price: $48.00 $43.20 You Save 10%
39 Elkay 66534C Evaporator Assembly (Discontinued) Item #: 102777 Learn More
More Info
40 Elkay 70002C Screw Item #: 102509 Learn More
More Info
41 Elkay 55996C Strainer Item #: 102483 Learn More
$27.50
42 Elkay 55931C Bottom Plate Cover Grey Item #: 102500 Learn More
$27.50
43 Elkay 22897C Bottom Cover Panel Item #: 102749 Learn More
$38.75
44 Elkay 51531C Pivot Block Item #: 102479 Learn More
$11.36
More Info
45 Elkay 11-14117-43-620 Nut 1/4" Item #: 102542 Learn More
More Info
46 Elkay 22836C Panel-RH PV Item #: 107035 Learn More
$40.00
46 Elkay 22838C Right Hand Stainless Steel Panel Item #: 106661 Learn More
$40.39
46 Elkay 28123C PANEL-RH PUSH (PV) Item #: 135635 Learn More
List Price: $48.00 $43.20 You Save 10%
46 Elkay 28124C Panel-RH Push (SS) Item #: 135636 Learn More
List Price: $68.00 $61.20 You Save 10%
47 Elkay 22828C Panel-LH Push PV Item #: 134140 Learn More
$43.75
More Info
47 Elkay 22830C Left Hand Stainless Steel Pushbutton Panel Item #: 106662 Learn More
$43.20
47 Elkay 28127C PANEL-LH PUSH (PV) Item #: 135637 Learn More
List Price: $48.00 $43.20 You Save 10%
47 Elkay 28128C Panel-LH Push (SS) Item #: 135638 Learn More
List Price: $68.00 $61.20 You Save 10%
48 Elkay 22804C Front Panel Platinum Vinyl Item #: 102750 Learn More
List Price: $55.00 $49.50 You Save 10%
48 Elkay 22806C Front Panel SS Item #: 102871 Learn More
List Price: $69.00 $62.10 You Save 10%
48 Elkay 28131C Front Panel Platinum Vinyl Item #: 102789 Learn More
List Price: $55.00 $49.50 You Save 10%
48 Elkay 28132C Front Panel (ss) Item #: 106981 Learn More
List Price: $95.00 $85.50 You Save 10%
49 Halsey Taylor 55859C Push Bar Adapter Item #: 102543 Learn More
$11.48
50 Elkay 55947C Grey Push Button Item #: 102729 Learn More
$14.57
More Info
51 Elkay 22900C Front Push Bar Bracket Item #: 102464 Learn More
$21.00
52 Elkay 70864C Torx Head Screw Item #: 102501 Learn More
$2.75
53 Elkay 50212C Pivot Block Pin Item #: 102477 Learn More
$7.56
More Info
54 Elkay 51667C Bumper, Press Bar Item #: 102819 Learn More
$8.52
55 Elkay 40045C Hex Nut Item #: 102472 Learn More
$28.59
56 Elkay 23003C Bracket, Regulator Mounting Item #: 102808 Learn More
$15.00
57 Elkay 15005C Cartridge Retaining Nut Item #: 102460 Learn More
$8.34
More Info
58 Elkay 61314C Valve Regulator Cartridge (Green Spring) Item #: 102539 Learn More
$40.83
59 Elkay Cartridge Holder 50986C Item #: 102478 Learn More
$43.75
60 Elkay 70935C Screw-Shoulder Item #: 106157 Learn More
$5.50
61 Elkay 11-26275-43-890 Screw 10/24 Item #: 102504 Learn More
$2.75
62 Elkay 22901C Side Push Bar Bracket Item #: 102465 Learn More
$15.40
63 Elkay 70682C John Guest Tee Coupling 1/4" x 1/4" x 1/4" Item #: 102492 Learn More
$28.50
65 Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48" Item #: 102487 Learn More
$15.40
NS Elkay 40-06609-43-730 Mounting Bracket Item #: 102628 Learn More
$19.50
More Info
