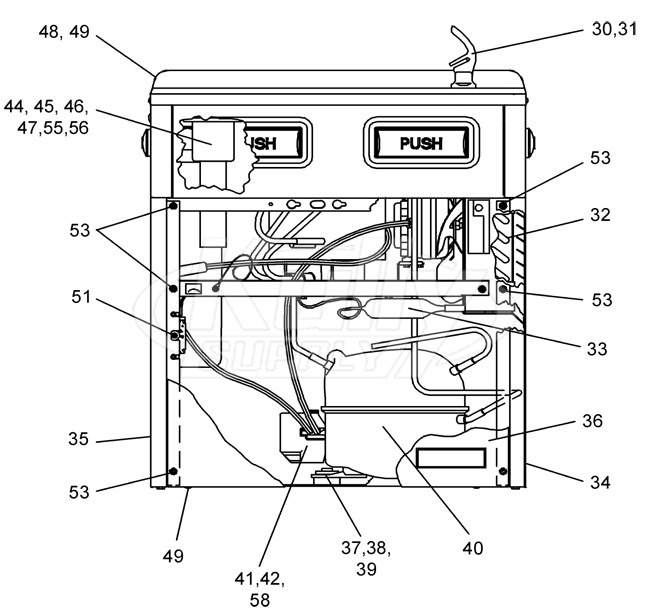

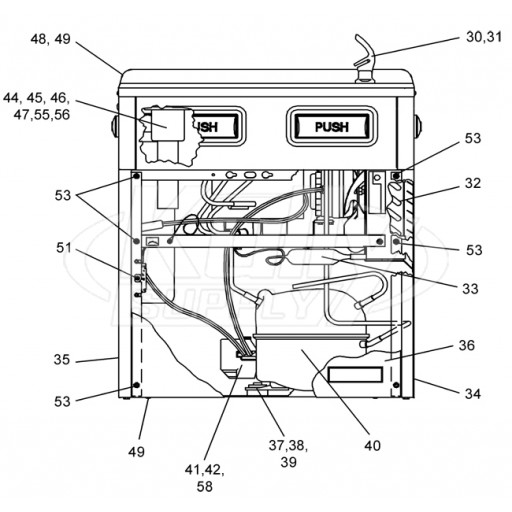

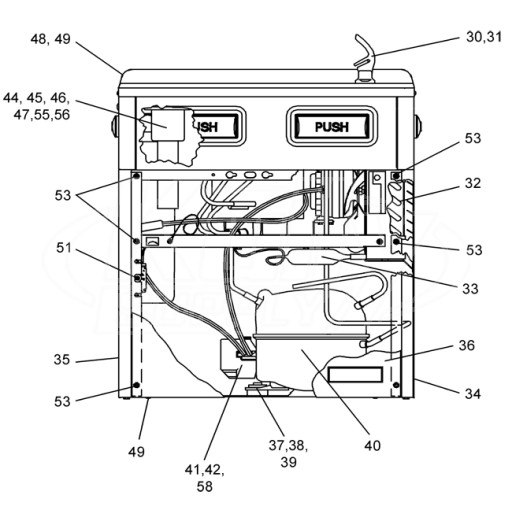

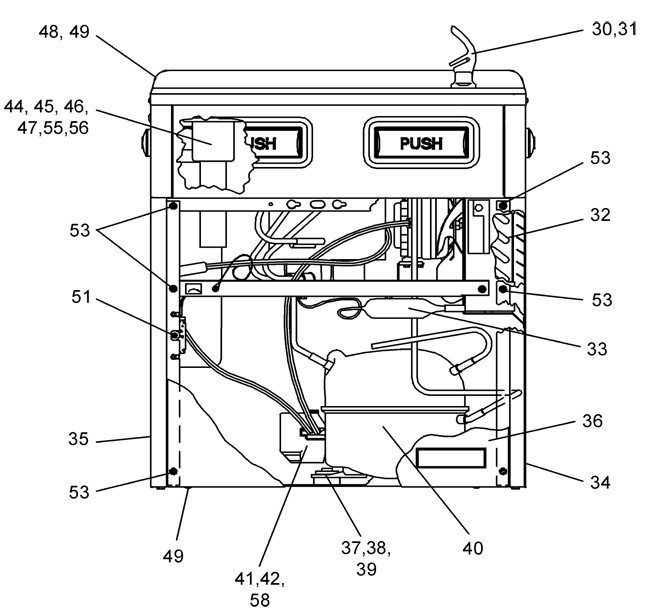

Halsey Taylor HACFSWF.E Parts Breakdown

  • Item #: breakdown-HACFSWF.E
  • |
  • Model: HACFSWF.E
  • |
  • Manufacturer: Halsey Taylor
Breakdown for post 1994 models: HAC8FWFQ*1E, HAC8FSWFQ*1E.
Part # Image Part Details Price Options
1 Elkay 22897C Bottom Cover Panel Item #: 102749 Learn More
$38.75
2 Elkay 51531C Pivot Block Item #: 102479 Learn More
$11.36
More Info
3 Elkay 11-14117-43-620 Nut 1/4" Item #: 102542 Learn More
More Info
4 Elkay 22901C Side Push Bar Bracket Item #: 102465 Learn More
$15.40
5 Elkay 22820C RH Panel(pv) Item #: 133877 Learn More
$37.50
5 Elkay 22822C Right-Hand Panel Item #: 133431 Learn More
List Price: $44.00 $40.39 You Save 8%
5 Elkay 22836C Panel-RH PV Item #: 107035 Learn More
$40.00
5 Elkay 22838C Right Hand Stainless Steel Panel Item #: 106661 Learn More
$40.39
6 Elkay 22812C Panel-LH PV Item #: 107036 Learn More
$38.75
6 Elkay 22814C Left-Hand Panel Item #: 133432 Learn More
List Price: $50.00 $45.00 You Save 10%
6 Elkay 22828C Panel-LH Push PV Item #: 134140 Learn More
$43.75
More Info
6 Elkay 22830C Left Hand Stainless Steel Pushbutton Panel Item #: 106662 Learn More
$43.20
7 Elkay 22804C Front Panel Platinum Vinyl Item #: 102750 Learn More
List Price: $55.00 $49.50 You Save 10%
7 Elkay 22806C Front Panel SS Item #: 102871 Learn More
List Price: $69.00 $62.10 You Save 10%
8 Halsey Taylor 55859C Push Bar Adapter Item #: 102543 Learn More
$11.48
9 Elkay 55947C Grey Push Button Item #: 102729 Learn More
$14.57
More Info
10 Elkay 22900C Front Push Bar Bracket Item #: 102464 Learn More
$21.00
11 Elkay 70864C Torx Head Screw Item #: 102501 Learn More
$2.75
12 Elkay 50212C Pivot Block Pin Item #: 102477 Learn More
$7.56
More Info
13 Elkay 51667C Bumper, Press Bar Item #: 102819 Learn More
$8.52
14 Elkay 40045C Hex Nut Item #: 102472 Learn More
$28.59
15 Elkay 23003C Bracket, Regulator Mounting Item #: 102808 Learn More
$15.00
16 Elkay 15005C Cartridge Retaining Nut Item #: 102460 Learn More
$8.34
More Info
17 Elkay 61314C Valve Regulator Cartridge (Green Spring) Item #: 102539 Learn More
$40.83
18 Elkay Cartridge Holder 50986C Item #: 102478 Learn More
$43.75
19 Elkay 70935C Screw-Shoulder Item #: 106157 Learn More
$5.50
20 Elkay 11-26275-43-890 Screw 10/24 Item #: 102504 Learn More
$2.75
21 Elkay 31517C Cord-Power 115V (Discontinued) Item #: 129690 Learn More
More Info
22 Elkay 30664C Fan Blade (Discontinued) Item #: 106616 Learn More
More Info
23 Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued) Item #: 106370 Learn More
More Info
24 Elkay 31490C Fan Motor (Discontinued) Item #: 102518 Learn More
More Info
25 Elkay 70009C Exp-Screw Furn w/AL Motor Item #: 106633 Learn More
More Info
26 Elkay 22899C Fan Shroud (Discontinued) Item #: 135310 Learn More
More Info
27 Elkay 38417001 Screw (Discontinued) Item #: 107671 Learn More
More Info
28 Elkay 75524C Panel Clip - U Type Item #: 136660 Learn More
More Info
29 Elkay 56159C Plastic 1/4" Bubbler Nipple Item #: 102846 Learn More
More Info
30 Halsey Taylor Chrome-Plated Bubbler 51544C (Discontinued) Item #: 102522 Learn More
More Info
31 Elkay 0000001192 Flat Black Gasket Item #: 102517 Learn More
$12.60
32 Elkay 62152C Condenser (Discontinued) Item #: 107630 Learn More
More Info
32 Elkay 66743C Condenser (Discontinued) Item #: 133604 Learn More
More Info
33 Elkay 66703C DRIER-134A (Discontinued) Item #: 136559 Learn More
More Info
34 Elkay 22860C PANEL-RH REAR (PV) HAC Item #: 135306 Learn More
List Price: $56.65 $54.45 You Save 4%
34 Elkay 22862C PANEL-RH REAR (S) Item #: 135307 Learn More
List Price: $133.00 $119.70 You Save 10%
35 Elkay 27872C Wrapper Panel EZ Stainless Steel (Discontinued) Item #: 106432 Learn More
More Info
36 Elkay 22844C Front Lower Panel (PV) Item #: 106218 Learn More
List Price: $44.00 $40.39 You Save 8%
36 Elkay 22955C Panel-Front Lower (SS) Item #: 106426 Learn More
List Price: $95.00 $85.50 You Save 10%
37 Elkay 10-15161-43-550 Stud (Discontinued) Item #: 110862 Learn More
$6.13
More Info
38 Elkay 10-08067-40-570 Grommet (Discontinued) Item #: 110863 Learn More
More Info
39 Elkay 19037000 Clip (Discontinued) Item #: 110864 Learn More
More Info
40 Elkay 36094C Compressor Service Pak 115V (Discontinued) Item #: 106299 Learn More
More Info
41 Elkay 35959C Relay (Discontinued) Item #: 102705 Learn More
More Info
42 Elkay 35768C Cover Relay (Discontinued) Item #: 129695 Learn More
More Info
43 Elkay 66532C HEATX-BARRIER FREE Item #: 136519 Learn More
$27.56
44 Elkay 45351C Assy. Waste Line (Discontinued) Item #: 107129 Learn More
More Info
45 Elkay 100147140560 Drain Gasket Item #: 102742 Learn More
$8.80
46 Elkay 10-26399-31-640 Drain Plug Item #: 102778 Learn More
$24.75
47 Halsey Taylor 16-02705-08-640 Strainer Plate Item #: 102520 Learn More
$13.48
49 Elkay 75634C Basin Screw Item #: 129717 Learn More
$6.27
More Info
50 Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48" Item #: 102487 Learn More
$15.40
51 Elkay 31513C Cold Control Thermostat Item #: 102467 Learn More
List Price: $48.00 $43.20 You Save 10%
52 Elkay 66534C Evaporator Assembly (Discontinued) Item #: 102777 Learn More
More Info
53 Elkay 70002C Screw Item #: 102509 Learn More
More Info
54 Elkay 50124C BUMPR-CORK/RUBBER Item #: 136252 Learn More
$3.83
55 Elkay 56121C 1-1/4" Corner Elbow (Discontinued) Item #: 102738 Learn More
More Info
56 Elkay 75588C Drain Nut (Discontinued) Item #: 102739 Learn More
More Info
57 Elkay 55931C Bottom Plate Cover Grey Item #: 102500 Learn More
$27.50
58 Elkay 36158C Overload 115V (Discontinued) Item #: 106323 Learn More
More Info
NS Elkay 75589C Drain Gasket (Discontinued) Item #: 102740 Learn More
More Info
NS Elkay 40-06609-43-730 Mounting Bracket Item #: 102628 Learn More
$19.50
More Info
59 Elkay 51294C Filter Housing Head Item #: 102511 Learn More
$39.14
More Info
60 Elkay 70792C Screw Item #: 107324 Learn More
$6.60
61 Elkay 70823C Fitting - Superseal 3/8(10mm) Item #: 106622 Learn More
$15.00
62 Elkay 70822C Fitting - Superseal 1/4 (6mm) (Discontinued) Item #: 106623 Learn More
More Info
63 Halsey Taylor 55897C Replacement Filter (for HWF 172) Item #: 102760 Learn More
$82.40
64 Elkay 70818C Elbow Fitting 3/8 Stem 3/8 Tube Item #: 102880 Learn More
$27.50
65 Elkay 22490C BRKT -FILTER MOUNTING Item #: 135271 Learn More
$32.50
