Description
General

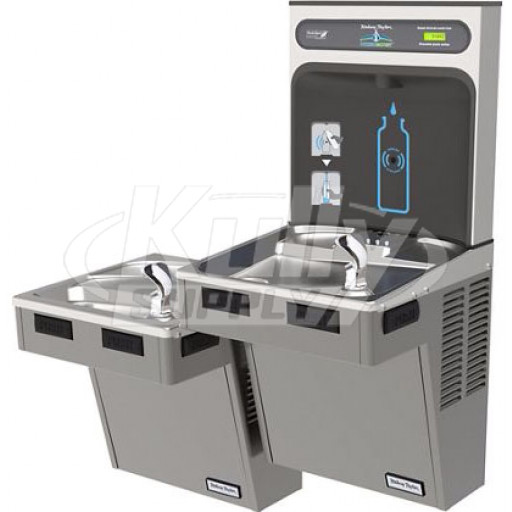

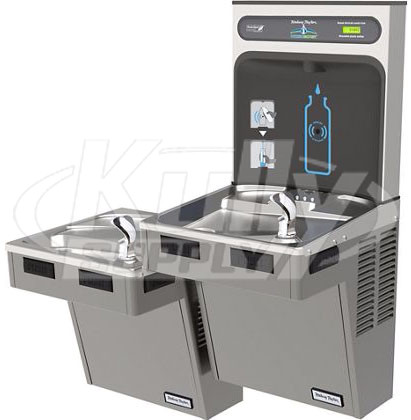

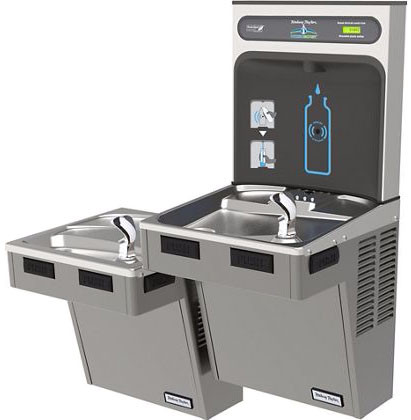

Complete water station including HydroBoost® bottle filling station and HAC water cooler(s). Self-contained, wall-mounted bi-level water cooler. Model HTHB-HAC8BLR delivers chilled drinking water; Model HTHB-HACDBLR delivers non-refrigerated drinking water. Exclusive one-piece, chrome-plated two-stream Double Bubbler™ with non-removable anti-squirt feature and integral hood. Automatic stream height regulator is located inside unit to prevent tampering. Includes self-closing, light touch front and side pushbar actuation with raised letters for the visually impaired. Type 300 series stainless steel top, with satin finish resists stains. Anti-splash ridge reduces splatter. Contoured to insure proper drainage. Designed to be easily accessible to both physically challenged and able-bodied individuals. Ideally suited for installation in public areas. Model meets state and federal requirements as defined by the Americans with Disabilities Act.
Features and Benefits
HydroBoost Bottle Filling Station: Sensor-activated enhanced with user interface graphics. Quick fill rate is 1.1 gallons per minute on refrigerated model and 1.5 gallon per minute on non-refrigerated model. Laminar flow provides a clean fill with minimal splash and easy maintenance. Equipped with an automatic 20-second shut-off timer. Silver Ion Anti-Microbial Protection: Key plastic components are integrated with silver ion anti-microbial protection to inhibit growth of mold and mildew. Green Counter: Visually displays count of plastic bottles saved from landfills. (Based on 20 oz. bottles for refrigerated models) Double Bubbler: Features an exclusive one-piece, chrome plated two-stream mound-building bubbler with non-removable anti-squirt feature. It’s integral hood insures a satisfying drink of water. Push Bar Actuation Mechanism: Self-closing light-touch push bars on front and sides with raised letters for the visually impaired. Automatic Stream Height Regulator: Self-closing assembly is located inside unit to prevent tampering. Unit resists corrosion and liming. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi. Inlet Strainer: Easily cleaned in-line strainer screen traps particles of 140 microns or larger before they enter the waterway. Water Inlet: 3/8” O.D. Tubing Drain Outlet: 1-1/2” tube outlet for 1-1/2” slip joint connection. Trap and service stop not included. Refrigeration System: Hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer and self-lubricated fan cools copper/ aluminum condenser. System uses R-134A refrigerant. Protected by Halsey Taylor’s Limited 5 Year Warranty.
Manufacturer Info
Halsey Taylor offers outdoor water coolers, water coolers for schools, parks and shopping centers, floor-mounted and wall-mounted coolers, and fountains in a variety of shapes and styles. Our durable and attractive finishes further reflect our concern for our products appearance, as well as their ability to withstand the test of time.
