Description
General

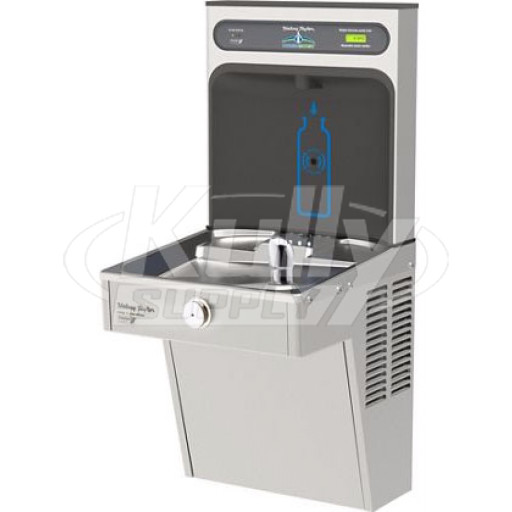

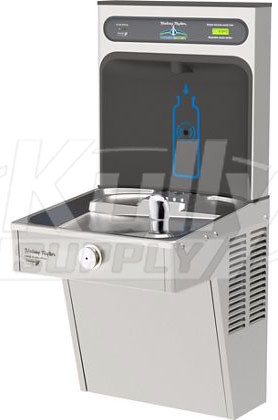

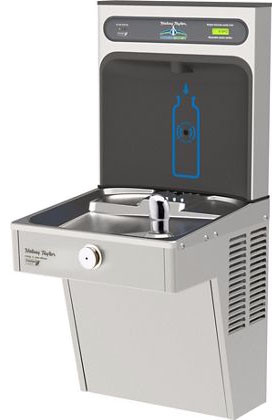

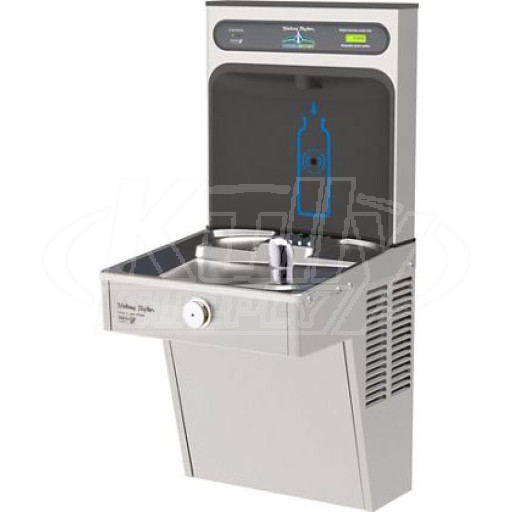

Complete water station including HydroBoost® bottle filling station and HVR Green Single water cooler. GreenSpec® Listed, energy and water efficient single water cooler model. Self-contained, wall-mounted, electric, refrigerated model. One-piece, heavy duty, vandal-resistant water conservation bubbler with integral hood. Automatic stream height regulator is located inside unit to prevent tampering. Includes self-closing, light touch front pushbutton actuation. Type 300 series stainless steel cooler top, with satin finish resists stains. Anti-splash ridge reduces splatter. Contoured to insure proper drainage.
Features and Benefits
HydroBoost Bottle Filling Station: Sensor-activated enhanced with user interface graphics. Quick fill rate is 1.1 gallons per minute. Laminar flow provides a clean fill with minimal splash and easy maintenance. Equipped with an automatic 20-second shut-off timer.
Silver Ion AntiMicrobial Protection: Key plastic components are integrated with silver ion anti-microbial protection to inhibit growth of mold and mildew.
Green Counter: Visually displays count of plastic bottles saved from waste. (Based on 20 oz. bottles.)
Pushbutton Actuation Mechanism: Self-closing, vandal-resistant pushbutton does not require grasping or twisting.
Automatic Stream High Regulator: Self-closing assembly is located inside unit to prevent tampering. Unit resists corrosion and liming. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi.
Water Inlet: 3/8” O.D. Tubing
Drain Outlet: 1-1/4” tube outlet for 1-1/4” slip joint connection. Trap and service stop not included.
Refrigeration System: Hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer and self-lubricated fan cools copper/ aluminum condenser. System uses R-134A refrigerant. Protected by Halsey Taylor’s Limited 5 Year Warranty.
Suggested Specifications
Unit shall include a single water cooler with a bottle filling station. Units shall have a high-efficiency refrigeration system and deliver 8 GPH of 50° F drinking water at 90° F ambient air and 80° F inlet water. Lower unit shall have mechanically activated pushbutton activation. Bottle filler shall include electronic sensor for no-touch activation with automatic 20-second shut-off timer. Shall include a Green Counter™ displaying the count of plastic bottles saved from the landfill. Shall provide 1.1 gpm with laminar flow to minimize splashing. Shall include anti-microbial protected plastic
components to prevent mold and mildew. Cooler shall have stainless steel cabinet and basin. Cooler shall include removable drain strainer. Shall comply with ADA guidelines for visual and motion disabilities. The manufacturer shall certify the unit to meet the requirements of NSF/ANSI 61 and 372, UL 399 and CAN/CSA 22.2 No. 120.
Manufacturer Info
Halsey Taylor offers outdoor water coolers, water coolers for schools, parks and shopping centers, floor-mounted and wall-mounted coolers, and fountains in a variety of shapes and styles. Our durable and attractive finishes further reflect our concern for our products appearance, as well as their ability to withstand the test of time.
List Price: $2,238.00 You Save 25%
List Price: $3,227.00 You Save 25%
