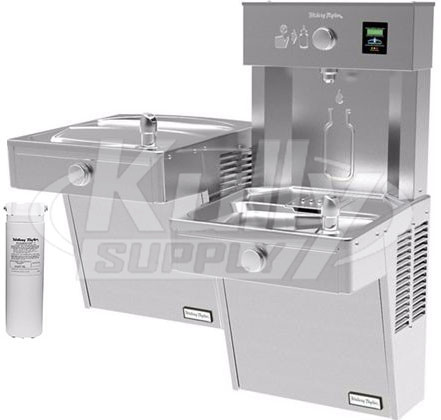

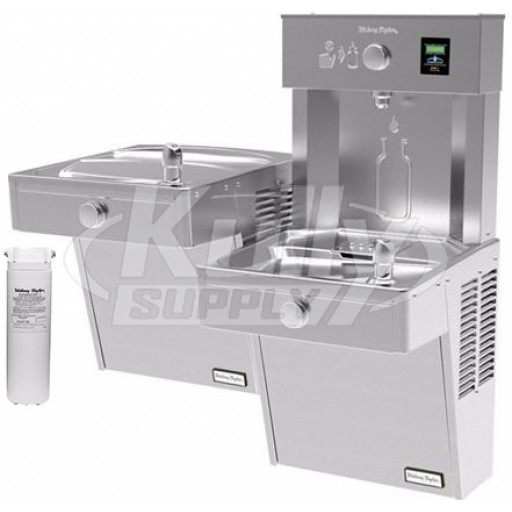

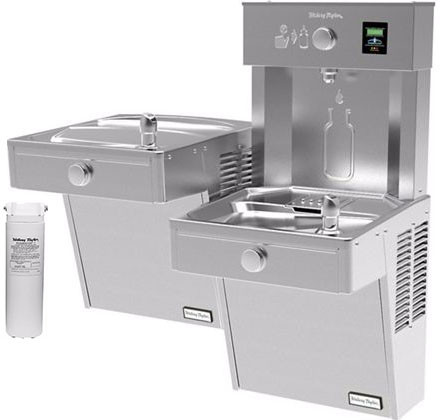

Halsey Taylor HydroBoost HTHBHVR8BL Filtered Heavy Duty Vandal-Resistant Dual Drinking Fountain with Bottle Filler

Description

General

Complete filtered water station including HydroBoost bottle filling station and HVR water cooler. Self-contained, stainless steel, wall mount single level water cooler.

HVR Water Cooler

Model HTHBHVR8BL delivers chilled water; HTHBHVRBL delivers ambient drinking water. Vandal-resistant, one-piece, heavy-duty bubbler with integral hood guard design to prevent tampering, airborne deposits and contamination. Automatic stream height regulator is located inside unit to prevent tampering. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi. Includes self-closing vandal-resistant pushbutton which does not require grasping or twisting. Type 300 series stainless steel cooler top with satin finish to resist stains and corrosion. Basin includes anti-splash ridge and contoured to insure proper drainage.

HydroBoost Bottle Filling Station

Stainless steel design for tamper-resistance. Pushbutton activation enhanced with embossed user graphics. Quick fill rate is 1.1 gallons per minute on chilled model and 1.5 gpm on ambient model. Laminar flow provides a clean fill with minimal splash and easy maintenance. 30-second shut-off timer for water flow. Recessed orifice to prevent cross-contamination.

Features and Benefits

• Vandal-resistant cooler and bottle filling station in a consolidated space saving ADA compliant design
• Pushbutton activation with automatic 20-second shut-off timer on bottle filler
• Quick Fill Rate 1.1 GPM
• Green Counter™; counts the quantity of bottles saved from waste
• Features 3000 gallon capacity WaterSentry®; Plus filtration with visual LED Filter Monitor to indicate when replacement is necessary

Lead Reduction Filter w/ Filter Life Indicator

Equipped with the HWF3000 WaterSentry ® Plus 3000 gallon capacity filter. Quick Disconnect, 1/4 turn installation and automatic inlet shutoff valve that closes when filter is removed. High-grade filter is made with activated carbon. Complies with NSF/ANSI 41 for Aesthetic Chlorine, Class I Particulate and Taste and Odor reduction and NSF/ANSI 53 for Lead reduction. Green, yellow and red LEDs visually indicate when filter maintenance is required. For service replacement, order as: 55898C (single), 55898C_3PK (three), 55898C_12PK (twelve) 55898C_24PK (twenty-four), or 55898C_48PK (forty-eight).

Suggested Specifications

Model HTHBHVR8BL shall deliver 8GPH of 50 o F drinking water at 90 o F ambient air and 80 o F inlet water. Model HTHBHVRBL shall deliver non-chilled drinking water. Stainless steel construction. Shall include WaterSentry® Plus 3000 gallon capacity filter, certified to NSF/ANSI 42 and 53 with LED filter life monitor to indicate when replacement is necessary. Shall include vandal-resistant, one-piece bubbler with integral hood. Shall include vandal-resistant pushbutton activation with embossed user graphics. Shall include 30-second auto shut-off for water flow. Shall include Green Counter with tempered glass protective covering. Shall provide 1.1-1.5 gpm with laminar flow for minimal splash and recessed orifice to prevent cross-contamination. Cooler shall have stainless steel basin with anti-splash ridge and removable drain strainer. Shall comply with ADA standards, UL399, CAN/CSA 22.2 No. 120, NSF/ANSI 61 and NSF/ANSI 372.

Manufacturer Info

Halsey Taylor offers outdoor water coolers, water coolers for schools, parks and shopping centers, floor-mounted and wall-mounted coolers, and fountains in a variety of shapes and styles. Our durable and attractive finishes further reflect our concern for our products appearance, as well as their ability to withstand the test of time.
