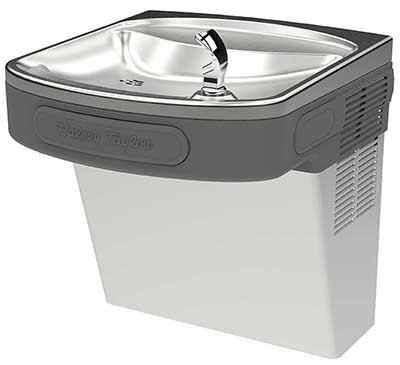

Halsey Taylor HTVZ8PV-NF Drinking Fountain

Description

Features

• Easy-Touch pushbar activation
• Extra deep basin minimizes splashing; with integral drain
• Exclusive one-piece, Chrome-plated two-stream Double Bubbler™ with non-removable anti-squirt feature and integral hood. It’s integral hood insures a satisfying drink of water
• Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure

GENERAL

Self-contained, electric refrigerated wall-mounted non-filtered water cooler easily accessible to physically challenged individuals. HTVZ8BL delivers 8 gph of 50°F drinking water at 90°F ambient air and 80°F inlet water.

Exclusive one-piece, Chrome-plated two-stream Double Bubbler™ with non-removable anti-squirt feature and integral hood. Automatic stream height regulator is located inside unit to prevent tampering. Includes self-closing, light touch front and side pushbar actuation with raised letters for the visually impaired. Type 300 series stainless steel cooler top, with satin finish resists stains. Contoured to insure proper drainage.

CERTIFICATIONS

The manufacturer shall certify the unit to meet the requirements of NSF/ANSI 61 and 372, UL 399 and CAN/CSA 22.2 No. 120.

COOLING SYSTEM

• Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication.
• Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
• Cooling Unit: Tube type. Self-cleansing. Continuous copper tubing which is fully insulated with EPS foam that meets UL requirements for self-extinguishing material.
• Refrigerant Control: Refrigerant R134a is controlled by accurately calibrated capillary tube.
• Temperature Control: Easily accessible enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements.

CONSTRUCTION

• Stainless Steel basin with integral drain
• Galvanized structural steel cooler chassis provides structural integrity
• Stainless Steel bottle filler wrapper with ABS plastic alcove
• Cooler cabinet available as Platinum Vinyl Clad Steel or Stainless Steel (additional cost) construction
• Chrome-plated two-stream Double Bubbler™ with non-removable anti-squirt feature and integral hood.

Manufacturer Info

Halsey Taylor offers outdoor water coolers, water coolers for schools, parks and shopping centers, floor-mounted and wall-mounted coolers, and fountains in a variety of shapes and styles. Our durable and attractive finishes further reflect our concern for our products appearance, as well as their ability to withstand the test of time.
