Description
GENERAL

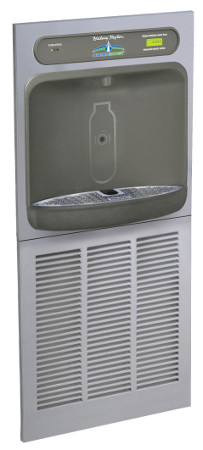

In-wall, recessed design for stand-alone applications or paired with Halsey Taylor Contour™ and OVL™ fountains to create the ultimate high end water station. When properly installed, unit meets reach range guidelines as defined by the Americans with Disabilities Act.
BOTTLE FILLING
Quick fill rate at 1.5 gallons per minute. Laminar flow provides a clean fill with minimal splash and easy maintenance.
SENSOR ACTIVATED
User interface design makes touchless operation intuitive. Equipped with automatic 30-second shut-off timer.
SILVER ION ANTI-MICROBIAL PROTECTION
Key plastic components are integrated with silver ion anti-microbial protection to inhibit growth of mold and mildew.
LEAD REDUCTION FILTER WITH FILTER LIFE INDICATOR
Equipped with the HWF3000 WaterSentry® Plus Filter which is designed to remove lead particles and chlorine. Also reduces odors and discoloration from incoming water. Features include Quick-Disconnect, 1/4 turn installation. Automatic inlet shut-off valve that closes when filter is removed. High-grade filter is made with activated carbon and patented ATS lead-removal media.
Green, yellow, and red LEDs visually indicate when filter maintenance is required. For service replacement, order as: 55898C – Single filter 55898C_3PK – Filter three-pack.
GREEN TICKER
Visually displays count of 16 ounce plastic bottles saved from landfills.
MOUNTING FRAME
Mounting frame is manufactured of corrosion resistant, galvanized steel. open construction designed for ease of installation. Mounting frame can be shipped in advance for rough-in installation.
PANEL SYSTEM
Designed with hinged top and bottom stainless steel panels for easy access and service. Refrigerated model includes louvered panel. Non-refrigerated models includes solid panel.
REFRIGERATION SYSTEM (Model HTHB-8)
Hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer, and self-lubricated fan cools copper/aluminum condenser. System uses R134A refrigerant. Protected by Halsey Taylor’s Limited 5 Year Warranty.
SUGGESTED SPECIFICATIONS
Model HTHB-8 provides 8.0 gph of 50º F water at 90º F ambient and 80º F inlet water. Shall be recessed design and constructed of 18 gauge Type 300 series stainless steel and ABS plastic. Shall include electronic sensor for no-touch activation with automatic 30-second shut-off timer. Shall provide 1.5 gpm flow rate with laminar flow to minimize splashing. Shall include antimicrobial protected plastic components to prevent mold and mildew. Shall include the WaterSentry® Plus filter, certified to NSF/ANSI 42 and 53 for lead, with visual monitor to indicate when replacement is necessary. Shall meet ADA guidelines for reach ranges, when properly installed. Shall be lead-free design which meets Safe Drinking Water Act and is certified to NSF/ANSI 61 and California AB1953. Shall be listed by Underwriters Laboratories to both U.S. and Canadian requirements.
NOTE: Continued product improvement makes specifications subject to change without notice. See Halsey Taylor website for most current spec sheet.
