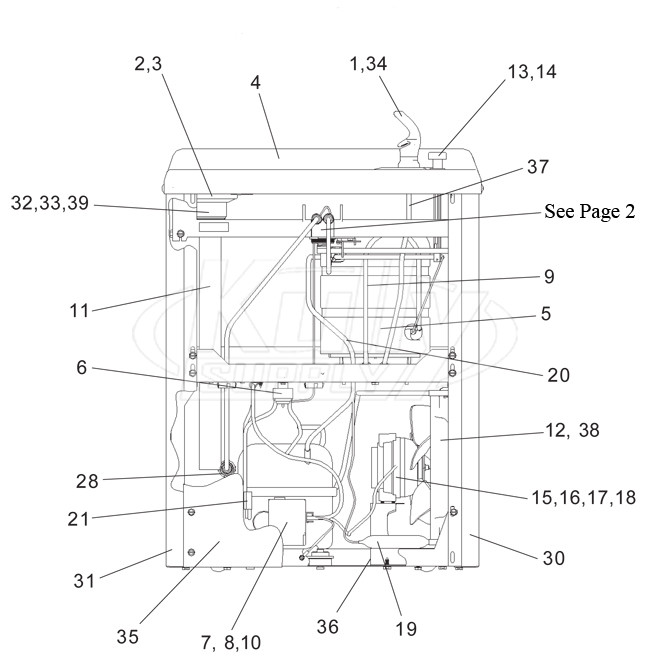

Halsey Taylor SW8.M Parts Breakdown

Halsey Taylor SW8.M Parts Breakdown

Item #: breakdown-SW8.M

Manufacturer: Halsey Taylor

Breakdown for models: SW8AQ*1M, SW8AQ*2M, and SWD*M.

Spec Sheet

Part #	Part Details	Price	Options
1	Halsey Taylor Chrome-Plated Bubbler 51544C (Discontinued) Item #: 102522 Learn More	More Info
2	Elkay 10-26399-31-640 Drain Plug Item #: 102778 Learn More	$24.75
3	Halsey Taylor 16-02705-08-640 Strainer Plate Item #: 102520 Learn More	$13.48
4	Elkay 28340C TOP -BASIN Item #: 135729 Learn More	List Price: $208.00 $187.20 You Save 10%
5	Elkay 66534C Evaporator Assembly (Discontinued) Item #: 102777 Learn More	More Info
6	Elkay 31513C Cold Control Thermostat Item #: 102467 Learn More	$43.20
7	Elkay 36094C Compressor Service Pak 115V (Discontinued) Item #: 106299 Learn More	More Info
8	Elkay 36158C Overload 115V (Discontinued) Item #: 106323 Learn More	More Info
8	Elkay 36163C Relay (Discontinued) Item #: 102854 Learn More	$16.12	More Info
9	Elkay 66723C ASSY -TUBE EVAP TO BASE Item #: 136568 Learn More	More Info
10	Elkay 35768C Cover Relay (Discontinued) Item #: 129695 Learn More	More Info
11	Elkay 45698C Assy-Tailpipe Item #: 130894 Learn More	List Price: $63.00 $56.70 You Save 10%
12	Elkay 66743C Condenser (Discontinued) Item #: 133604 Learn More	More Info
13	Elkay 10-14534-31-640 Cap, Push Button (Discontinued) Item #: 102890 Learn More	More Info
14	Elkay 10-15075-31-550 Stem, Push Button Item #: 102891 Learn More	$15.40
15	Elkay 31490C Fan Motor (Discontinued) Item #: 102518 Learn More	More Info
16	Elkay 30664C Fan Blade (Discontinued) Item #: 106616 Learn More	More Info
17	Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued) Item #: 106370 Learn More	More Info
18	Elkay 20282C Fan Motor Bracket Item #: 135125 Learn More	$26.40
19	Elkay 66703C DRIER-134A (Discontinued) Item #: 136559 Learn More	More Info
20	Elkay 66576C HEATX-BARRIER FREE (Discontinued) Item #: 136522 Learn More	More Info
21	Elkay 36208C Power Cord Item #: 136068 Learn More	List Price: $54.00 $48.60 You Save 10%
22	Elkay 15005C Cartridge Retaining Nut Item #: 102460 Learn More	$8.34	More Info
23	Elkay 26860C Regulator Lever Item #: 106113 Learn More	$11.00
24	Elkay 26861C Pivot Bracket Item #: 106114 Learn More	$11.55
25	Elkay 26862C Regulator Retaining Bracket Item #: 106115 Learn More	$11.00
26	Elkay Cartridge Holder 50986C Item #: 102478 Learn More	$43.75
27	Elkay 61314C Valve Regulator Cartridge (Green Spring) Item #: 102539 Learn More	$40.83
28	Elkay 55996C Strainer Item #: 102483 Learn More	$27.50
29	Elkay 55860C Bracket-Regulator Item #: 134114 Learn More	$32.50
30	Elkay 40-14503-48-410 PANEL-RH PLT VINYL Item #: 134937 Learn More	$54.45
30	Elkay 40-14503-42-830 PANEL-RH SW Item #: 134936 Learn More	$107.63
31	Elkay 40-14504-48-410 PANEL-LH PLT VINYL Item #: 134939 Learn More	$54.45
31	Elkay 40-14504-42-830 PANEL-LH SW Item #: 134938 Learn More	$107.63
32	Elkay 75588C Drain Nut (Discontinued) Item #: 102739 Learn More	More Info
33	Elkay 55913C Adapter- Drain w/o Holes Item #: 102781 Learn More	$22.50
34	Elkay 56159C Plastic 1/4" Bubbler Nipple Item #: 102846 Learn More	More Info
35	Elkay 40-14505-48-410 Front Panel Item #: 126542 Learn More	$49.63
35	Elkay 40-14505-42-830 PANEL-FRONT (SS) Item #: 134940 Learn More	$92.97
37	Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48" Item #: 102487 Learn More	$15.40
38	Elkay 56237C Shroud-Fan (Discontinued) Item #: 136367 Learn More	More Info
39	Elkay 75589C Drain Gasket (Discontinued) Item #: 102740 Learn More	More Info
NS	Elkay 40-06609-43-730 Mounting Bracket Item #: 102628 Learn More	$19.50	More Info
