Description
Applications

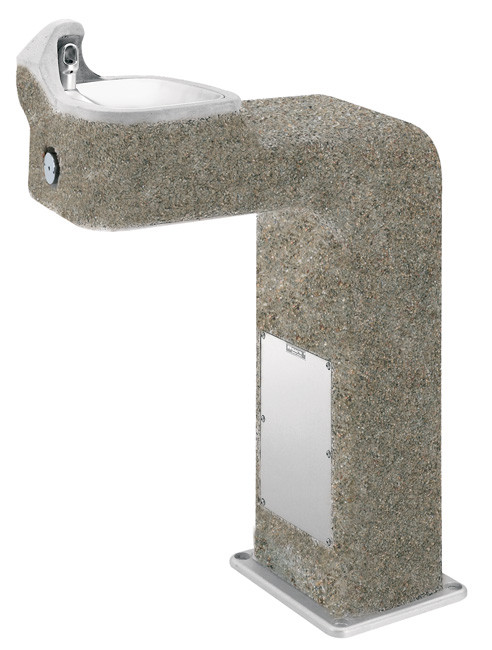

The Haws 3177 is perfect for either public or private settings, our concrete vibra-cast series is a great fit in “open-air” environments. Suitable in areas where weather conditions may be cause for concern, this series stands strong from the forest to the beach. Reinforced concrete vibra-cast design not only protects from corrosion, its Portland Gray color makes it recognizable enough to locate without compromising the outdoor atmosphere. This type of pedestal drinking fountain may also be placed in a variety of settings such as: parks, schools, and other recreational outdoor environments where the temperature remains above freezing.
The Haws 3177 meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, electric water coolers and electric drinking fountains to be lead-free by all known definitions including ANSI/NSF Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act.
Features and Benefits
- Bubbler Head: Polished chrome-plated brass bubbler head features an integral basin shank for added strength, and is equipped with a shielded, anti-squirt orifice that provides a steady sanitary source of water.
- Drain Clean-Out: Top-down access to the drain allows the fountain to be cleaned without taking the unit apart, which is ideal for outdoor settings that are high in drain-clogging sediment like leaves, garbage, and other debris.
- Construction: Heavy-duty vibra-cast reinforced concrete construction with exposed aggregate finish provide a perfect addition to outside environments, along with vandal-resistant bottom and access plates for added peace of mind. Stainless steel basin with a high-polished finish compliments almost any setting, and it also resists stains and corrosion.
- Push Button: With its patented (Pat.# 6,981,692) push-button valve assembly which allows for front access stream adjustment as well as cartridge and strainer access, this fountain offers the ultimate in ease of maintenance.
Options
- Hose Bib: Model 6275, compression hose bib faucet assembly with rough chrome-plated finish.
- Filter: Model 6426, 12” x 2”, in-line lead removal element that reduces lead from incoming water supply.
- Sand Trap: Model 6611, sand trap for installing adjacent to pedestal drinking fountains to help prevent debris and contaminants from clogging waste line.
- Concrete Colors: Haws offers the full palette of L.M. Scofield’s integral admixtures as illustrated on the L.M. Scofield color chart and the choice of 4 different finishes. White cement is also available.
Features and Benefits
- Concrete with exposed aggregate finish and wire to reinforce the vibra-cast offers an extremely solid and highly protected fountain.
- Hood extension protects the bubbler head with a partial enclosure, for a greater protected drinking point.
- Simplistic Portland Gray cement creates just the right amount of appeal for an outdoor fountain.
Warranty Info
Haws warrants that all of its products are guaranteed against defective material or poor workmanship for a period of one year from date of shipment. Haws liability under this warranty shall be discharged by furnishing without charge F.O.B. Haws Factory any goods, or part thereof, which shall appear to the Company upon inspection to be of defective material or not of first class workmanship, provided that claim is made in writing to Haws within a reasonable period after receipt of the product. Where claims for defects are made, the defective part or parts shall be delivered to the Company, prepaid, for inspection. Haws will not be liable for the cost of repairs, alterations or replacements, or for any expense connected therewith made by the owner or his agents, except upon written authority from Haws, Sparks, Nevada. Haws will not be liable for any damanges caused by
defective materials or poor workmanship, except for replacements, as provided above. Buyer agrees that Haws has made no other warranties either expressed or implied in addition to those above stated, except that of title with respect to any of the products or equipment sold hereunder and that Haws shall not be liable for general, special, or consequential damages claimed to arise under the contract of sale. The drinking fountain manufactured by Haws is warranted to function if installation and maintenance instructions provided are adhered to. The units also must be used for the purpose for which they were intended. No other warranties expressed or implied are authorized, provided or given by Haws.
Manufacturer Info
Haws manufactures award-winning drinking fountains, electric water coolers, hydration stations, and emergency equipment for a diverse set of industries. For over 103 years, Haws has been committed to bringing the highest quality water delivery and emergency equipment products to a wide variety of markets.
