Description
** NOTE: This fountain requires the purchase of Item #133715 Haws 6518.2FR Pneumatic-Operated Freeze-Resistant Valve System
Applications

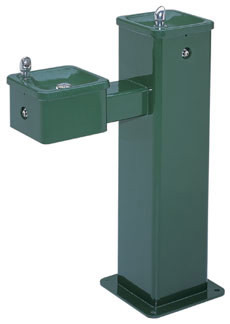

Taking performance and protection to a whole new level is the Haws 3500FR StreetSmartâ„¢ series drinking fountain. This unique drinking fountain is the perfect addition to parks, rest areas, and correctional facilities where vandalism may be more prone to take place. By welding the bowls directly to the upright, they become one with the unit, preventing removal. That, in addition to many other features for vandal-resistance, makes this fountain virtually indestructible. This series fountain may also be applicable in a wide assortment of other places not mentioned due to its great appeal through its vandal proof and wheelchair accessible design.
The Haws 3500FR meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, electric water coolers and electric drinking fountains to be lead-free by all known definitions including ANSI/NSF Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act.
Features and Benefits
- Barrier-Free: Barrier-free capabilities combined with its ease of use allows for a number of installation location possibilities.
- Drain Clean-Out: Top-down access to the drain allows the fountain to be cleaned without taking the unit apart, which is ideal for outdoor settings that are high in drain-clogging sediment like leaves, garbage, and other debris.
- All-Weather Capabilities: Fully engineered system with the pneumatic operated freeze-resistant valve installed below frost line to drain water to non-freezing depth allowing fountain to function year-round. Assembly can be lifted to surface and lowered back into casing for easy maintenance without disturbing the fountain.
- Construction: Superior strength and durability are achieved with the use of 12 gauge Type 304 Stainless Steel, along with integral 3/8” thick cast stainless bowls. The unit is trimmed with a glossy green powder-coat finish and it is secured to the ground with an integral mounting plate.
- Accessibility: Ease of maintenance is achieved with the use of an extra-large access door supplied with heavy-duty door hinges, and is locked by square key pins.
- Push Button: Polished chrome-plated push-button requires less than 5 lbs. to activate.
- Bubbler Head: Polished chrome-plated brass bubbler head features an integral basin shank for added strength, and is equipped with a shielded, anti-squirt orifice that provides a steady sanitary source of water.
Options
- Valve Box: Model 6625, ground box with lid, used with freeze-resistant valve models 6518FR and 6518.2FR.
- Mounting: Model MTG.3500 mounting plate gives in-ground support for many StreetSmart pedestal fountains and includes the mounting hardware.
- Mounting: Model MTG.3501, galvanized steel anchors.
- StreetSmart Colors: Nine StreetSmart powder-coated colors, (green, silver, red, blue, black, brown, orange, yellow and white), available at no extra charge.
Features and Benefits
- All around Heavy-duty stainless steel construction makes this the most protected and well designed fountain that Haws produces.
- Green powder-coat paint finish is standard with nine other powder-coat colors available at no charge.
Warranty Info
Haws warrants that all of its products are guaranteed against defective material or poor workmanship for a period of one year from date of shipment. Haws liability under this warranty shall be discharged by furnishing without charge F.O.B. Haws Factory any goods, or part thereof, which shall appear to the Company upon inspection to be of defective material or not of first class workmanship, provided that claim is made in writing to Haws within a reasonable period after receipt of the product. Where claims for defects are made, the defective part or parts shall be delivered to the Company, prepaid, for inspection. Haws will not be liable for the cost of repairs, alterations or replacements, or for any expense connected therewith made by the owner or his agents, except upon written authority from Haws, Sparks, Nevada. Haws will not be liable for any damanges caused by
defective materials or poor workmanship, except for replacements, as provided above. Buyer agrees that Haws has made no other warranties either expressed or implied in addition to those above stated, except that of title with respect to any of the products or equipment sold hereunder and that Haws shall not be liable for general, special, or consequential damages claimed to arise under the contract of sale. The drinking fountain manufactured by Haws is warranted to function if installation and maintenance instructions provided are adhered to. The units also must be used for the purpose for which they were intended. No other warranties expressed or implied are authorized, provided or given by Haws.
Manufacturer Info
Haws manufactures award-winning drinking fountains, electric water coolers, hydration stations, and emergency equipment for a diverse set of industries. For over 103 years, Haws has been committed to bringing the highest quality water delivery and emergency equipment products to a wide variety of markets.
