Description
Requires chiller and mounting frame priced separately
Perfect for either public or private settings, our stainless steel electric drinking fountains are a great fit in indoor environments. This series is precisely mounted, making it a nice addition to any surrounding. Specifically, this type fountain may be placed in settings such as: schools, office buildings, shopping malls, and other indoor environments where there is a demand for a chilled water source and/or wheel chair access.
Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty. Haws manufactures drinking fountains, electric water coolers and electric drinking fountains to be lead-free by all known definitions including ANSI/NSF Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Haws electric water coolers comply with ARI Standard 1010 and ANSI A117.1, and be listed by Underwriter Laboratories to U.S. and Canadian standards.
Specifications

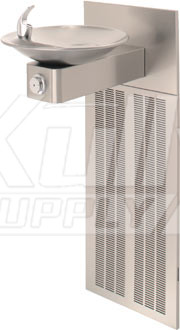

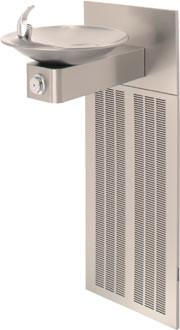

Haws H1001.8 wall mounted barrier-free water cooler shall include an 18 gauge Type 304 Stainless Steel satin finish basin with integral swirl design, push-button operated valve with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, stainless steel satin finish back panel and louvered intrusion-proof grill, and 1-1/4” O.D. waste pipe. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 lph) of water at 50°F (10°C) cooled from 80°F (26.7°C) inlet water at 90°F (32.2°C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5.
Back Panel
Stainless steel back panel helps to protect the wall from inadvertent splashing, and its decorative satin finish increases location visibility and completes the fountains attractive appearance.
Finish
Beautiful #4 satin stainless steel finish basin can be easily cleaned and maintained while also resisting corrosion.
Quality Control
Fountain is pre-built and fully water and pressure tested to ensure no leaks and proper function for reduced installation time and added peace of mind.
Construction
18 gauge Type 304 Stainless Steel fountain with attractive and functional swirl bowl design, along with a vandal-resistant bottom plate provides a long lasting unit with added peace of mind.
Bubbler Head
Polished chrome-plated brass bubbler head with integral laminar flow prevents splashing and provides a superior flow pattern. The integral basin shank and inserted roll pin adds vandal resistance strength to the design, and the shielded angled stream orifice produces a steady sanitary source of water.
Push Button
With its patented (Pat.# 6,981,692) push-button valve assembly which allows for front access stream adjustment as well as cartridge and strainer access, this fountain offers the ultimate in ease of maintenance.
Features and Benefits
- 18 gauge type 304 stainless steel bowl assembly mounted on a 14 gauge Type 304 Stainless Steel wall bracket.
- Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris. Designed to run at a low energy usage, this water cooler and fountain are assured to have a long lasting life.
- Laminar flow prevents splashing, keeping the drinking area contained and clean.
- Beautiful satin finish resists stains and corrosion.
Warranty Info
Haws warrants that all of its products are guaranteed against defective material or poor workmanship for a period of one year from date of shipment. Haws liability under this warranty shall be discharged by furnishing without charge F.O.B. Haws Factory any goods, or part thereof, which shall appear to the Company upon inspection to be of defective material or not of first class workmanship, provided that claim is made in writing to Haws within a reasonable period after receipt of the product. Where claims for defects are made, the defective part or parts shall be delivered to the Company, prepaid, for inspection. Haws will not be liable for the cost of repairs, alterations or replacements, or for any expense connected therewith made by the owner or his agents, except upon written authority from Haws, Sparks, Nevada. Haws will not be liable for any damanges caused by
defective materials or poor workmanship, except for replacements, as provided above. Buyer agrees that Haws has made no other warranties either expressed or implied in addition to those above stated, except that of title with respect to any of the products or equipment sold hereunder and that Haws shall not be liable for general, special, or consequential damages claimed to arise under the contract of sale. The drinking fountain manufactured by Haws is warranted to function if installation and maintenance instructions provided are adhered to. The units also must be used for the purpose for which they were intended. No other warranties expressed or implied are authorized, provided or given by Haws.
Manufacturer Info
Haws manufactures award-winning drinking fountains, electric water coolers, hydration stations, and emergency equipment for a diverse set of industries. For over 103 years, Haws has been committed to bringing the highest quality water delivery and emergency equipment products to a wide variety of markets.
