Description
Requires chiller and mounting frame priced separately
h3. Features
- Bubbler head, waste strainer, push button, and trap are antimicrobially treated using the natural protection of silver which helps protect it against the growth of mold and mildew on treated components.
- 14 gauge Type 304 Stainless Steel construction and required specialized mounting frame offer a well constructed sturdy fountain.
- Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris. Designed to run at a low energy usage, this water cooler and fountain are assured to have a long lasting life.
- One piece rectangular bowl is designed for extra durability and maintenance ease. Rounded corners eliminate sharp edges to protect against mishaps once in place.
- Beautiful satin finish resists stains and corrosion.

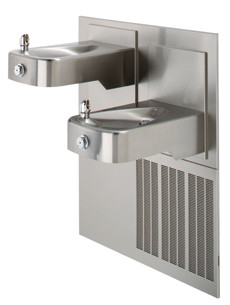

The Haws H1117.8 stainless steel water cooler is perfect for either public or private settings and is a great fit in indoor environments. This series is precisely mounted, making it a nice addition to any surrounding. Specifically, this type fountain may be placed in settings such as: schools, office buildings, shopping malls, and other indoor environments where there is a demand for a chilled water source and/or wheel chair access.
The Haws Water Cooler H1117.8 meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty. Haws manufactures drinking fountains, electric water coolers and electric drinking fountains to be lead-free by all known definitions including ANSI/NSF Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Haws electric water coolers comply with ARI Standard 1010 and ANSI A117.1, and be listed by Underwriter Laboratories to U.S. and Canadian standards.
Back Panel
Stainless steel back panel helps to protect the wall from inadvertent splashing, and its decorative satin finish increases location visibility and completes the fountains attractive appearance.
Integrated Trap
Spacious fountain design allows for the trap to be internally mounted which allows for easy access, and aids and reduces the installation process.
Antimicrobially Treated
Specific components are antimicrobially treated using the natural protection of silver. Silver helps protect against the growth of mold and mildew on the treated components. Treated surfaces include bubbler head, push button, waste strainer and trap.
Quality Control
Both fountains are pre-built and fully water and pressure tested to ensure no leaks and proper function for reduced installation time and added peace of mind.
Mounting
Heavy-duty galvanized steel mounting frame provides the sturdy hidden support needed for the “Hi-Lo” configuration of this unit. Further convenience is given to the chiller with the integral fold-out shelf.
Push Button
With its patented (Pat.# 6,981,692) push-button valve assembly which allows for front access stream adjustment as well as cartridge and strainer access, this fountain offers the ultimate in ease of maintenance.
Configurable
Supplied with a low profile bowl, individual adjustable panels, and multiple mounting positions, this fountain can be configured for adult and child ADA considerations.
Construction
Heavy-duty 14 gauge Type 304 Stainless Steal construction with integral 1/4” mounting plates for extra durability. Unit also includes vandal-resistant bottom plates for added peace-of-mind.
Bubbler Head
Polished chrome-plated brass bubbler head features an integral basin shank for added strength, and is equipped with a shielded, anti-squirt orifice that provides a steady sanitary source of water.
Specifications
Model H1117.8 electric “Hi-Lo” wall mounted barrier-free drinking fountain shall include dual 14 gauge Type 304 Stainless Steel satin finish basins, antimicrobially treated push-button, bubbler head, waste strainer and trap to protect against the growth of mold and mildew on the treated components. Push-button operated valves with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler heads, and polished chrome-plated vandal-resistant waste strainers. Unit shall also include a vandal-resistant bottom plates, stainless steel satin finish back panel and louvered intrusion-proof grill, high and low fountain mounting levels, and 1-1/4” IPS traps. Unit can be mounted to meet ADA or Child ADA specifications. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 lph) of water at 50°F (10°C) cooled from 80°F (26.7°C) inlet water at 90°F (32.2°C) ambient. 115 Volts, 60Hz, rated watts: 370, full load
Warranty Info
Haws warrants that all of its products are guaranteed against defective material or poor workmanship for a period of one year from date of shipment. Haws liability under this warranty shall be discharged by furnishing without charge F.O.B. Haws Factory any goods, or part thereof, which shall appear to the Company upon inspection to be of defective material or not of first class workmanship, provided that claim is made in writing to Haws within a reasonable period after receipt of the product. Where claims for defects are made, the defective part or parts shall be delivered to the Company, prepaid, for inspection. Haws will not be liable for the cost of repairs, alterations or replacements, or for any expense connected therewith made by the owner or his agents, except upon written authority from Haws, Sparks, Nevada. Haws will not be liable for any damanges caused by
defective materials or poor workmanship, except for replacements, as provided above. Buyer agrees that Haws has made no other warranties either expressed or implied in addition to those above stated, except that of title with respect to any of the products or equipment sold hereunder and that Haws shall not be liable for general, special, or consequential damages claimed to arise under the contract of sale. The drinking fountain manufactured by Haws is warranted to function if installation and maintenance instructions provided are adhered to. The units also must be used for the purpose for which they were intended. No other warranties expressed or implied are authorized, provided or given by Haws.
Manufacturer Info
Haws manufactures award-winning drinking fountains, electric water coolers, hydration stations, and emergency equipment for a diverse set of industries. For over 103 years, Haws has been committed to bringing the highest quality water delivery and emergency equipment products to a wide variety of markets.
