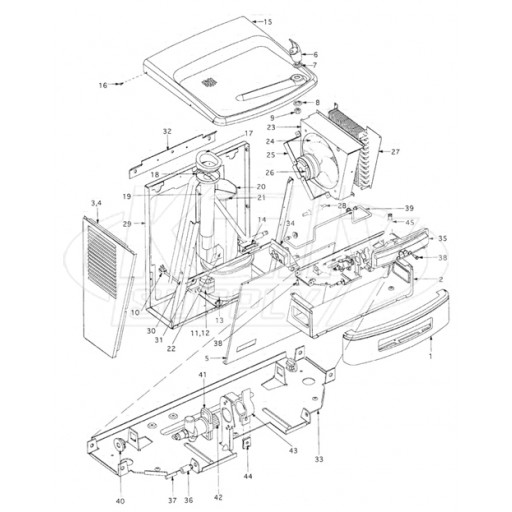

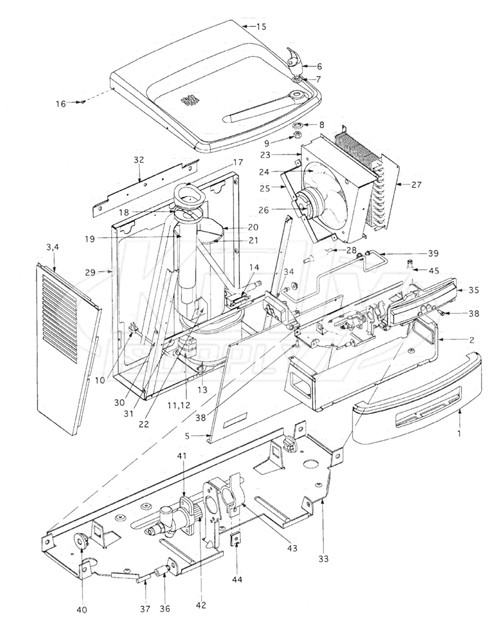

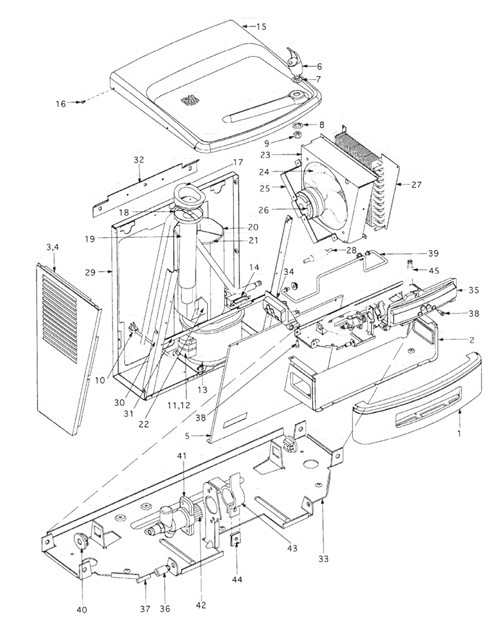

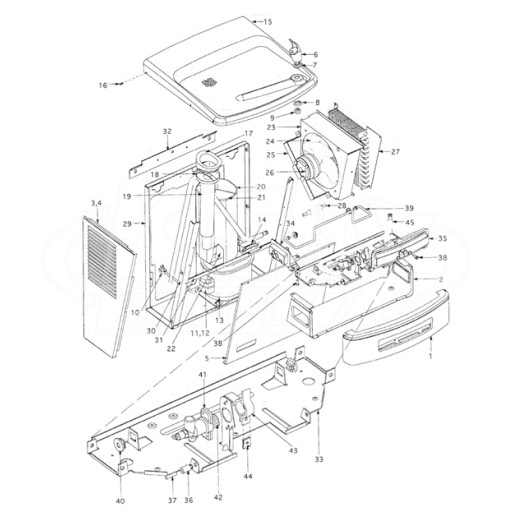

Oasis P8AM-D100 Parts Breakdown

Oasis P8AM-D100 Parts Breakdown

Item #: breakdown-P8AM-D100

Model: P8AM-D100
|
Manufacturer: Oasis

Breakdown for models: P8AM-D100, P8AMS-D100, PR8AMS-D100, PR8AMSL, P8AMS-001, PR8AMS-001

Spec Sheet

Part #	Part Details	Price	Options
1	Oasis 031754-006 Front Nose (Discontinued) Item #: 105275 Learn More	More Info
1	Oasis 031754-005 Front Nose (Discontinued) Item #: 105274 Learn More	More Info
1	Oasis 031754-007 FRONT NOSE, DRAWN STN (Discontinued) Item #: 105276 Learn More	More Info
2	Oasis 031753-002 Housing (Discontinued) Item #: 105258 Learn More	More Info
2	Oasis 031753-001 Housing, Middle Gst (Discontinued) Item #: 105257 Learn More	More Info
2	Oasis 031753-003 SS Housing (Discontinued) Item #: 105259 Learn More	More Info
3	Oasis 031751-002 Side Left San (Discontinued) Item #: 105222 Learn More	More Info
3	Oasis 031751-001 Panel, Side Left Gst (Discontinued) Item #: 105221 Learn More	More Info
3	Oasis 031751-003 SS Panel, Left Side (Discontinued) Item #: 105223 Learn More	More Info
4	Oasis 031750-002 Side Right San (Discontinued) Item #: 105196 Learn More	More Info
4	Oasis 031750-001 Panel, Side Right Gst (Discontinued) Item #: 105195 Learn More	More Info
4	Oasis 031750-003 SS Panel, Right Side (Discontinued) Item #: 105197 Learn More	More Info
5	Oasis 031752-002 Front Panel (Discontinued) Item #: 105248 Learn More	More Info
5	Oasis 031752-001 Front Panel (Discontinued) Item #: 105247 Learn More	More Info
5	Oasis 031752-003 Panel, Front Stn (Discontinued) Item #: 105249 Learn More	More Info
6	Oasis 032799-005 Soft Top Bubbler Head Item #: 102578 Learn More	List Price: $116.00 $110.20 You Save 5%
6	Oasis 030029-005 Cap and Nozzle Assembly Item #: 102579 Learn More	List Price: $63.34 $60.17 You Save 5%
7	Oasis 028706-031 Washer/Spacer/Gasket-Non Metal Item #: 104389 Learn More	$7.29
8	Oasis 028706-030 Washer/Spacer/Gasket-Non Metal Item #: 104388 Learn More	$7.29
9	Oasis 026824-019 Hex Nut Item #: 102837 Learn More	$5.01
10	Oasis 026540-045 Cord Assy, Power Supply Item #: 103900 Learn More	$27.35
13(11&12)	Oasis 033425-004 Kit, Compr,Nf7Fx (Discontinued) Item #: 133109 Learn More	More Info
14	Oasis 027040-007 Cold Control Thermostat Item #: 102563 Learn More	$40.72
15	Oasis 031714-001 TOP, WHEELCHAIR STD STN (Discontinued) Item #: 138034 Learn More	More Info
16	Oasis 031875-003 Screw, Truss Hd Tapping Torx Item #: 105313 Learn More	$4.84
17	Oasis 031756-001 Waste Gasket Item #: 102670 Learn More	$15.61
18	Oasis 031892-001 Waste Assembly Item #: 105332 Learn More	More Info
19	Oasis 031497-006, 031497-006-SP Insulation, Sponge Tubing Talc Item #: 105083 Learn More	More Info
20	Oasis 031898-001 Insulation, Clg Tank R/H (Discontinued) Item #: 105334 Learn More	More Info
21	Oasis 031899-001 Insulation, Clg Tank L/H (Discontinued) Item #: 105335 Learn More	More Info
22	Oasis 031775-003 Tank Assy, Clg Insul (Discontinued) Item #: 133008 Learn More	More Info
23	Oasis 031767-001 Shroud, Fan Item #: 105285 Learn More	$27.60
24	Oasis 024033 Fan Blade Item #: 102856 Learn More	$17.68
25	Oasis 026969 Bracket, Fan Motor Item #: 103408 Learn More	$13.50
26	Oasis 027354-038 Fan Motor Item #: 102869 Learn More	$82.65	More Info
27	Oasis 031766-001 Condenser (Discontinued) Item #: 105284 Learn More	More Info
28	Oasis 034343-003 Drier W/O Process Port Item #: 106012 Learn More	$15.78
29	Oasis 031747-001 Frame, Back/Bottom Item #: 132569 Learn More	$49.01
30	Oasis 031748-001 Strut, Support Rh & Item #: 131609 Learn More	$13.50
31	Oasis 031772-001 Angle, Cross Brace Item #: 105286 Learn More	$8.73
32	Oasis 031363-002 Hanger, Wcr Galv Item #: 105045 Learn More	$29.46
33	Oasis 031853-001 Shelf, Activation (Discontinued) Item #: 105304 Learn More	More Info
34	Oasis 031951-001,031764-001RH Push Button Assy, R/H, Nbz (Discontinued) Item #: 105343 Learn More	More Info
34	Oasis 031951-002,031764-001LH Push Button Assy, L/H, Nbz Item #: 105344 Learn More	$27.79
35	Oasis 031763-001 Front Push Bar (Discontinued) Item #: 105283 Learn More	More Info
36	Oasis 031856-001 BODY, PUSH RIVET Item #: 105306 Learn More	$4.99
37	Oasis 031859-001 RIVET, PUSH Item #: 105310 Learn More	$4.99
38	Oasis 031858-001 Screw, Adjust (Discontinued) Item #: 105309 Learn More	More Info
39	Oasis 031854-002 Rod, Activation (Discontinued) Item #: 105305 Learn More	More Info
40	Oasis 031857-002 Bushing, Rod (Discontinued) Item #: 105308 Learn More	More Info
41	Oasis 032045-002 Valve Body Item #: 102577 Learn More	$38.87
42	Oasis 013059-005 Drinking Fountain Valve Stem Assembly Item #: 102562 Learn More	List Price: $47.90 $45.51 You Save 5%
43	Oasis 031765-001 Valve Stem Clamp Item #: 102797 Learn More	$10.37
44	Oasis 030409-002 U Type Clip Item #: 104766 Learn More	$4.79
45	Oasis 031739-002 Tube Assembly, Valve To Bubbler Item #: 102838 Learn More	$26.34	More Info
